Ballade Sports S2000 GT35 K Swap Titanium Turbo Kit

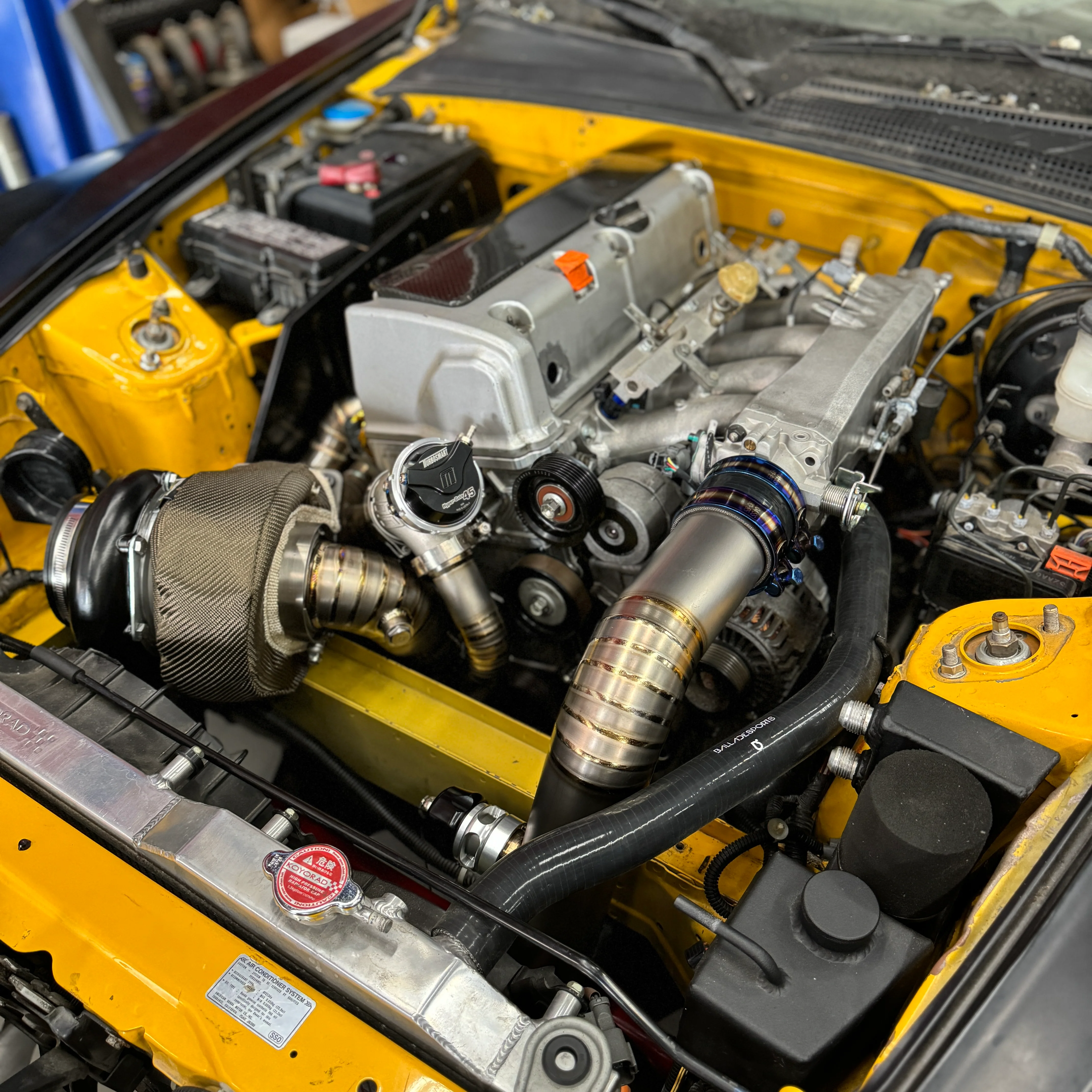

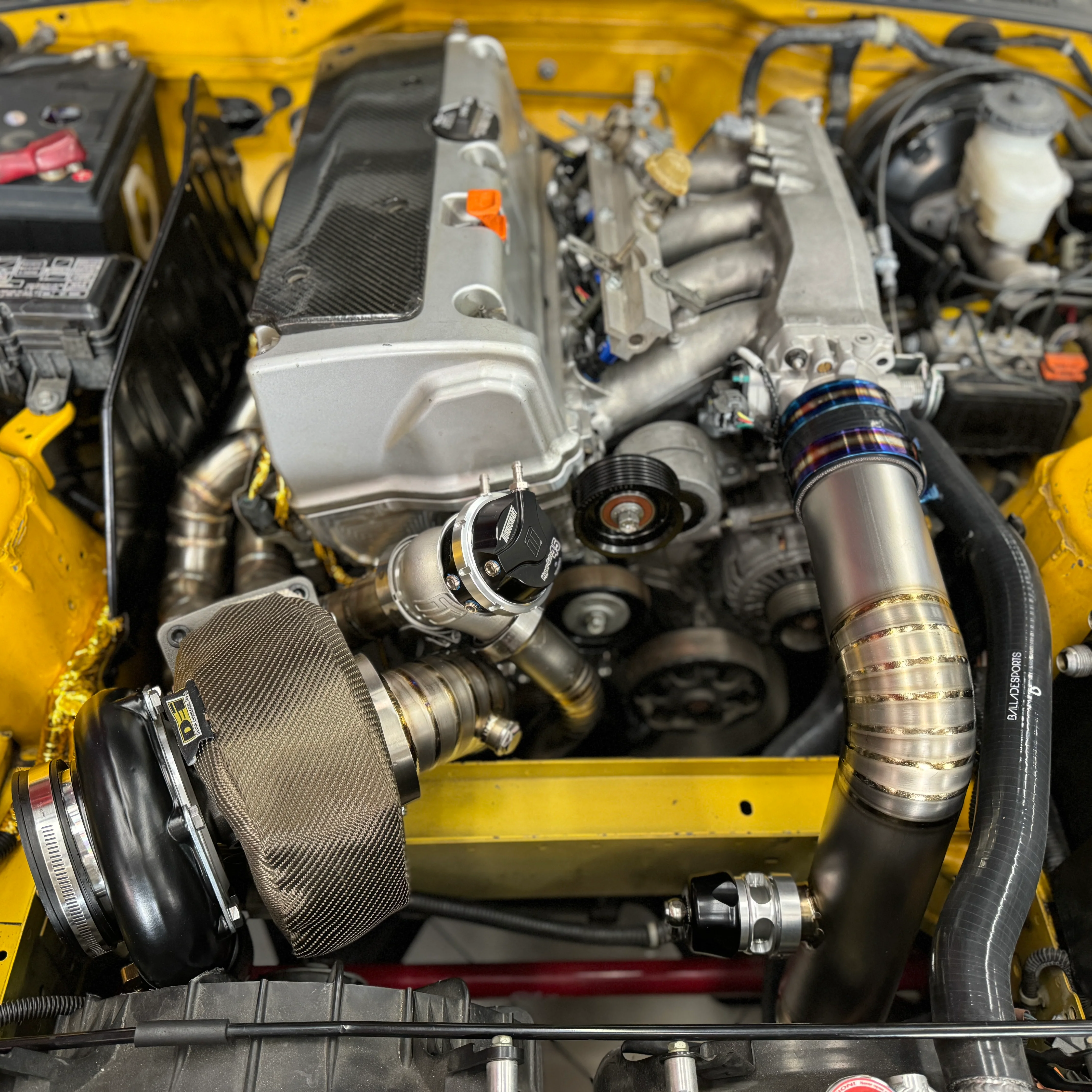

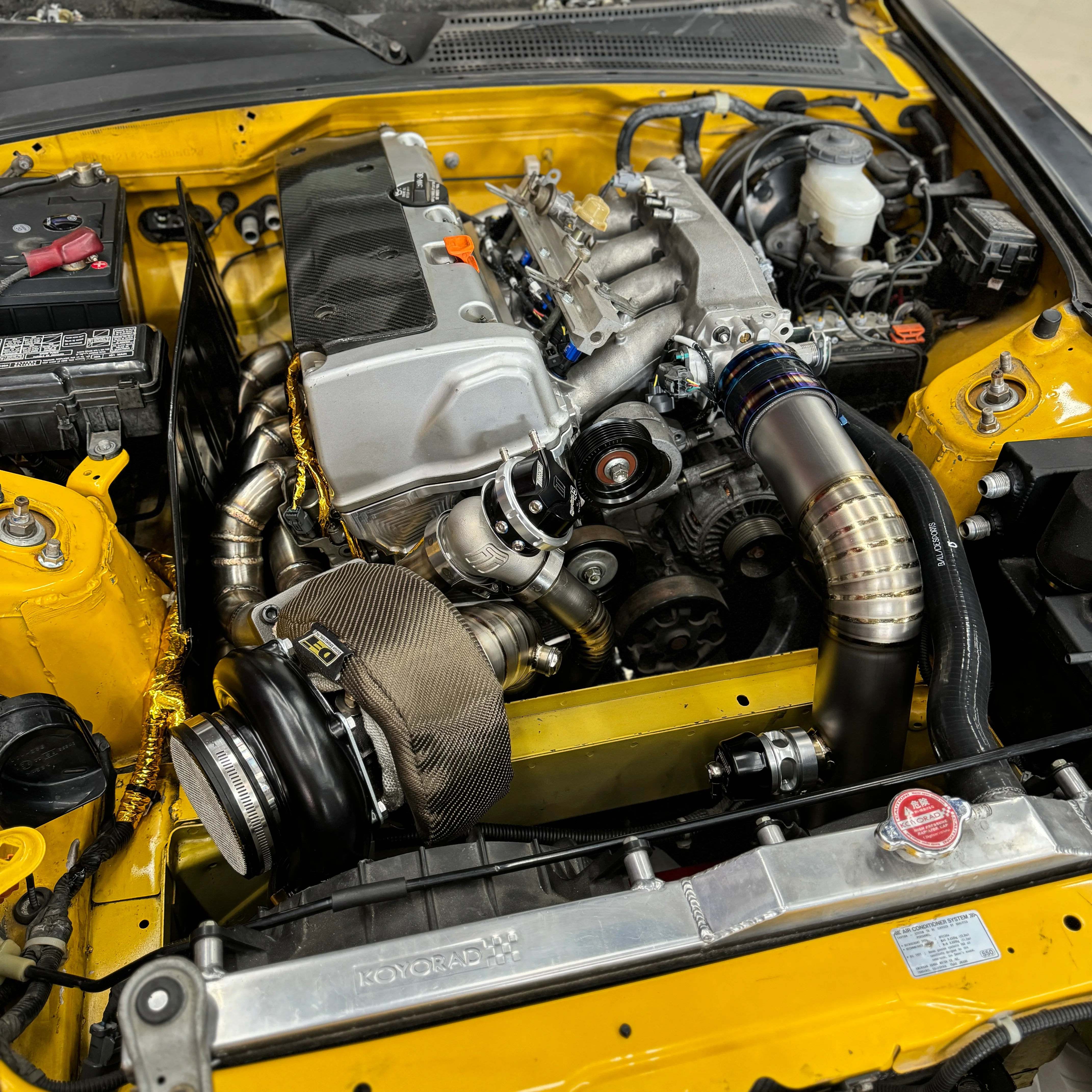

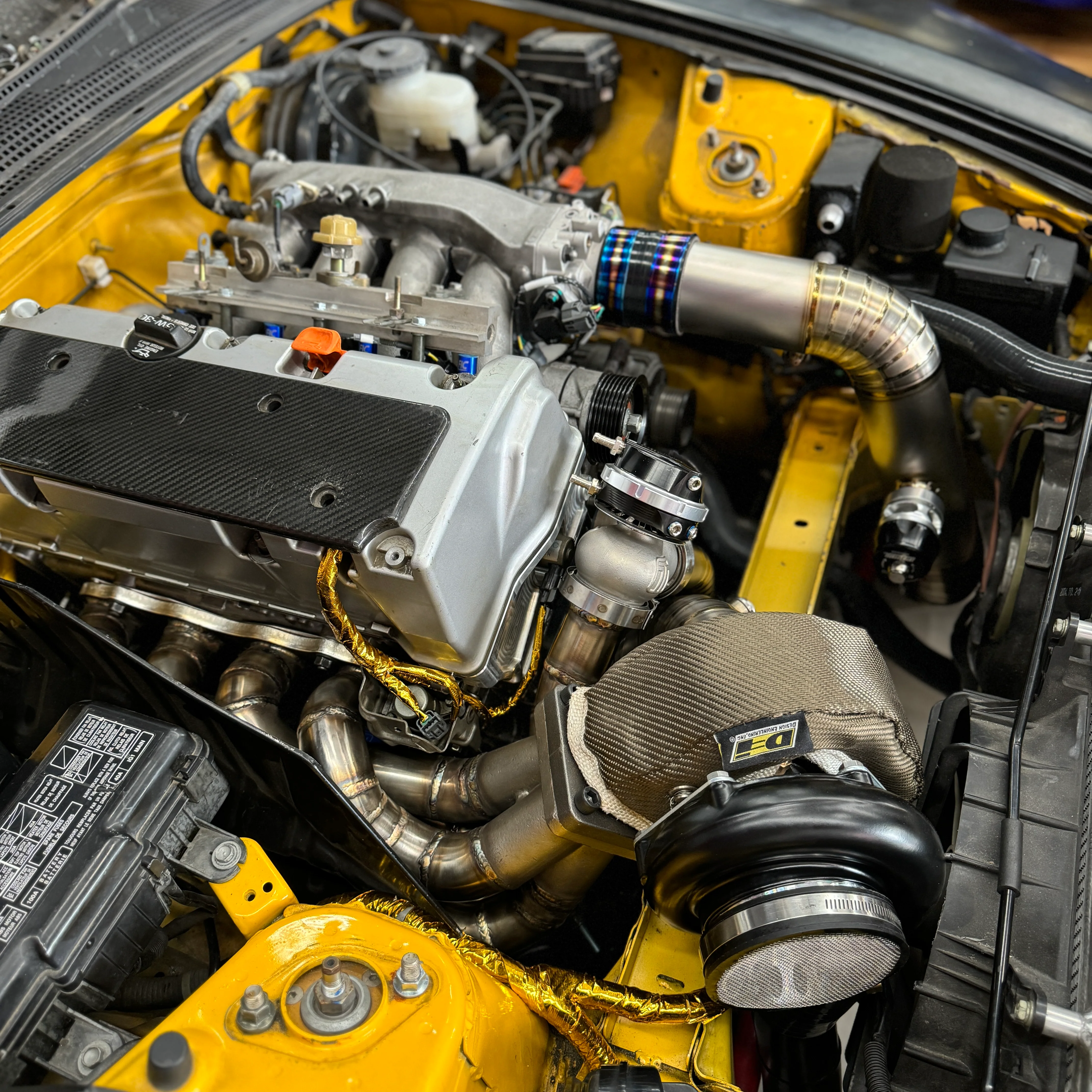

Ballade Sports S2000 GT35 K Swap Titanium Turbo Kit Is the same kit we offer for the F20C/F22C S2000 engine but with a K Series Turbo Manifold made to fit K swapped S2000s.

Fit ALL Year Model S2000s!!

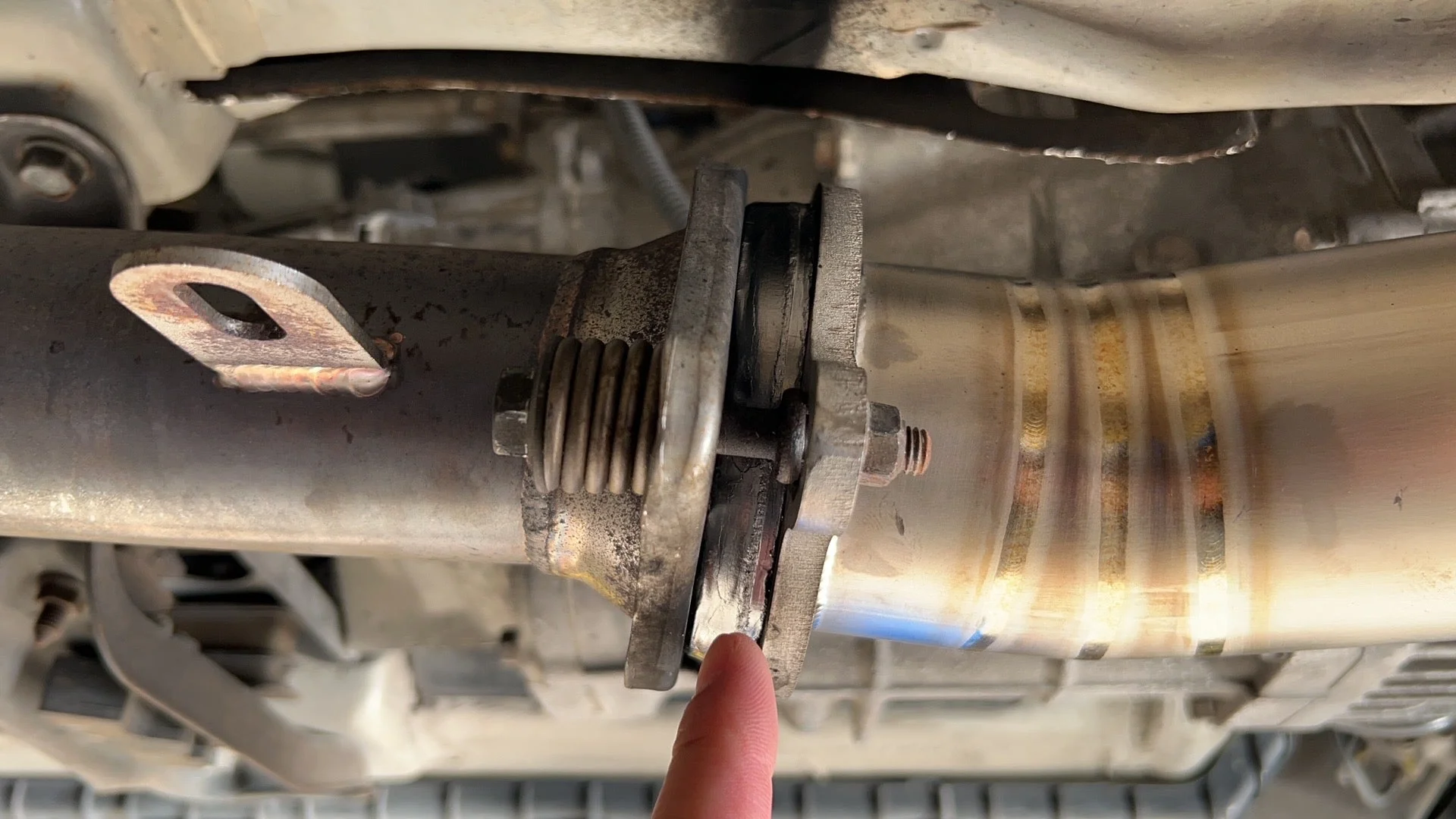

This is a fully bolt on kit. Fits to your Stock Catalytic Converter.  Does not require any welding, cutting or modifying.

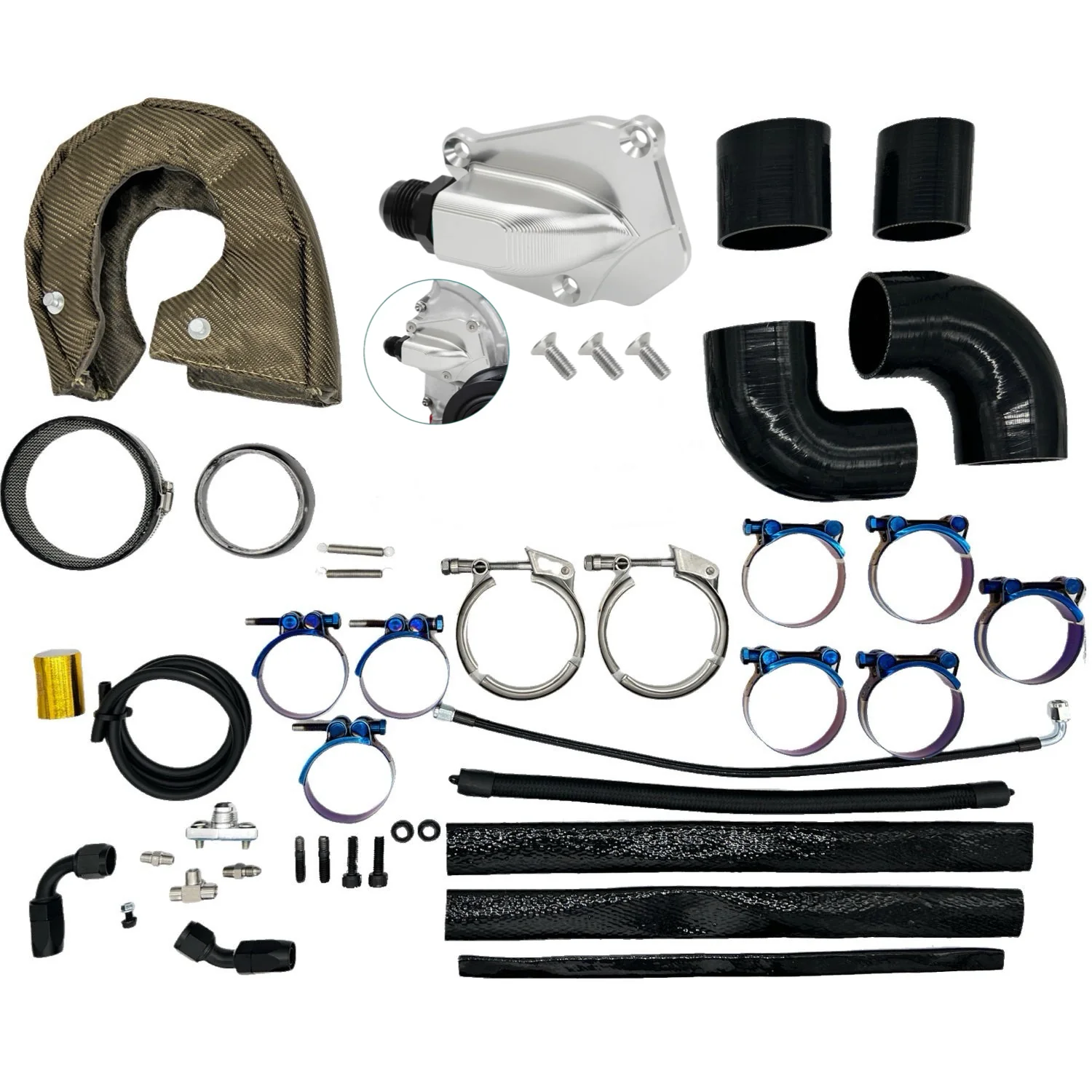

Included:

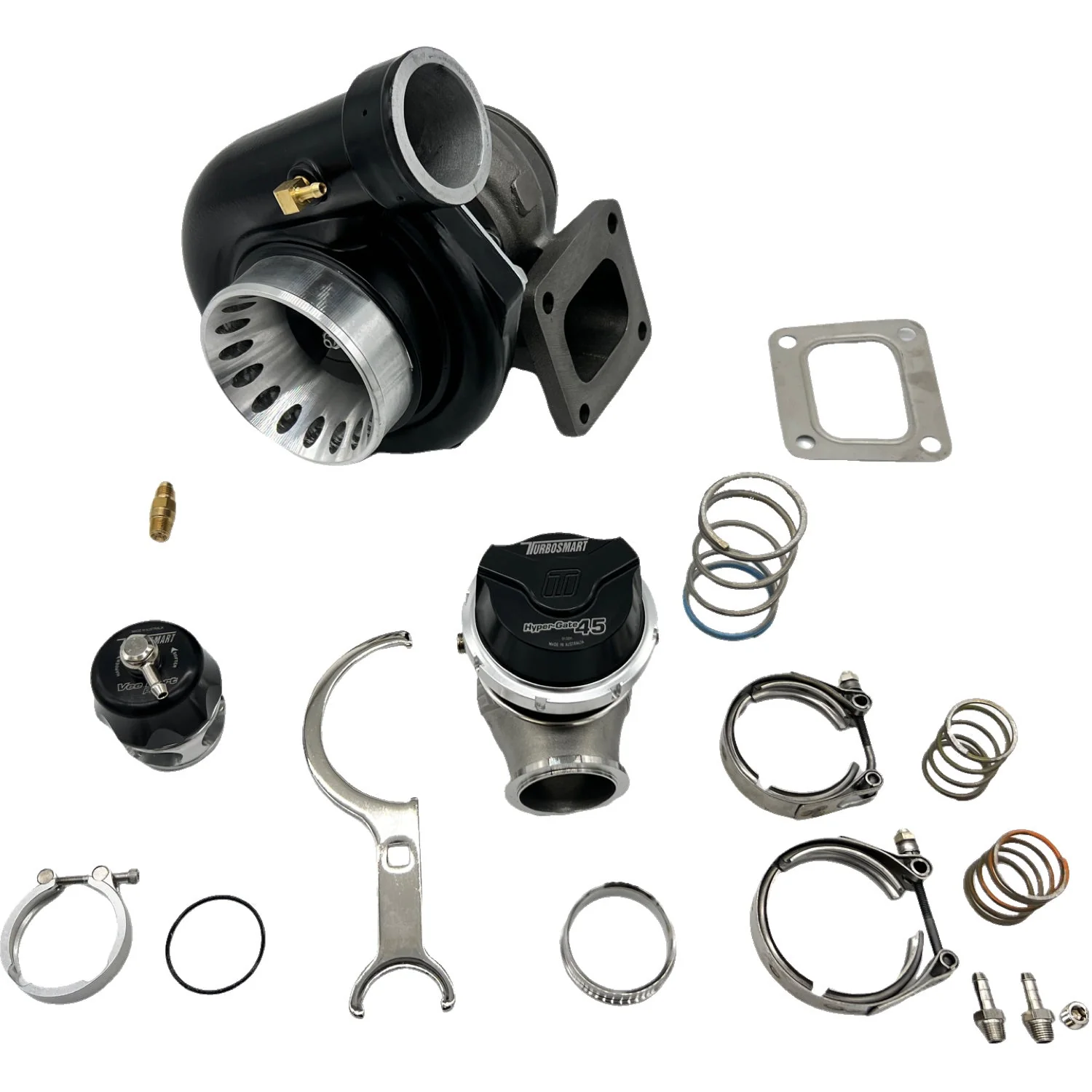

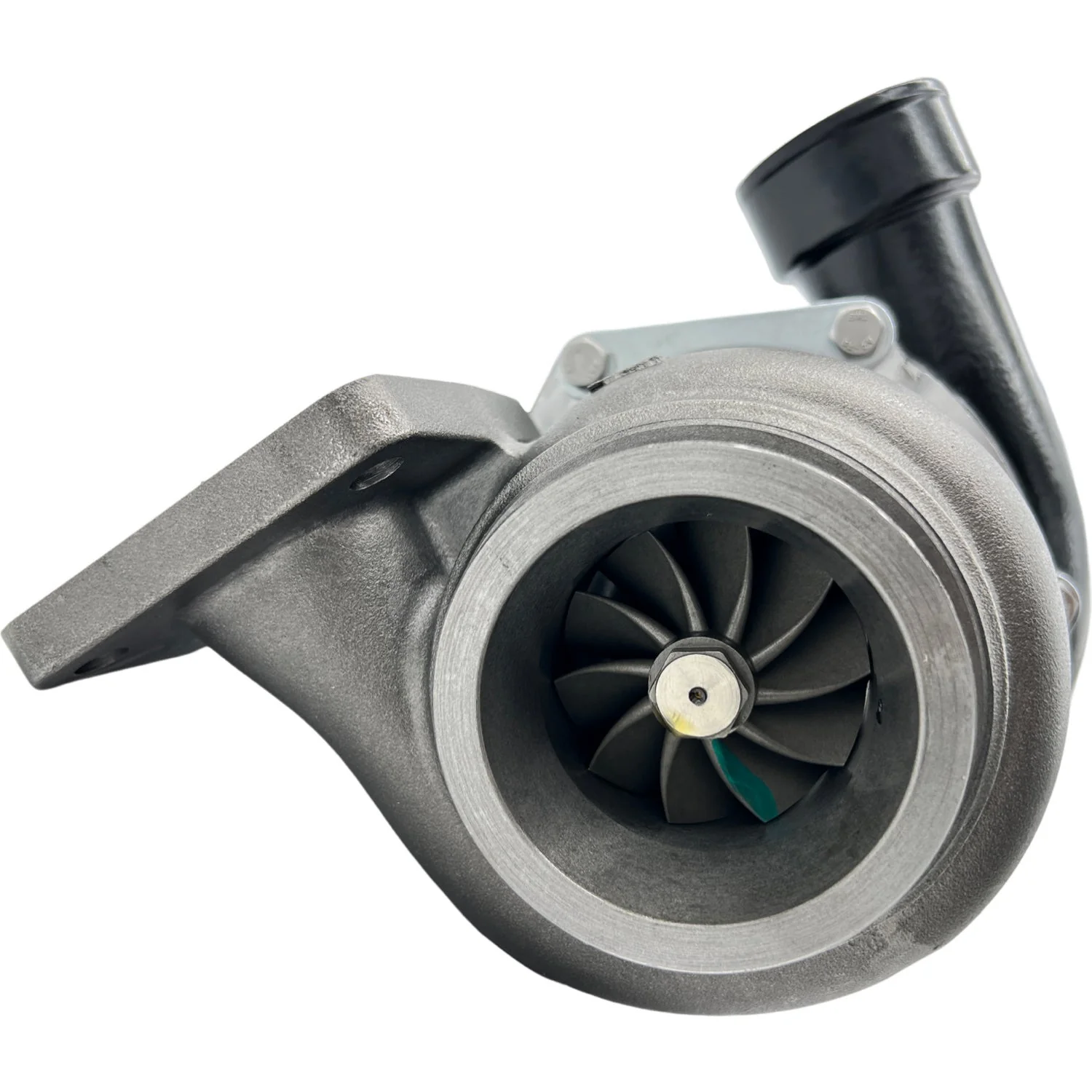

• Ballade Sports GT35 / T4 Size Ball Bearing Turbo (Black Coated Inlet). Rated for 500-600 whp
• Optional GARRETT GBC35-700 Available!! Click Link to Add

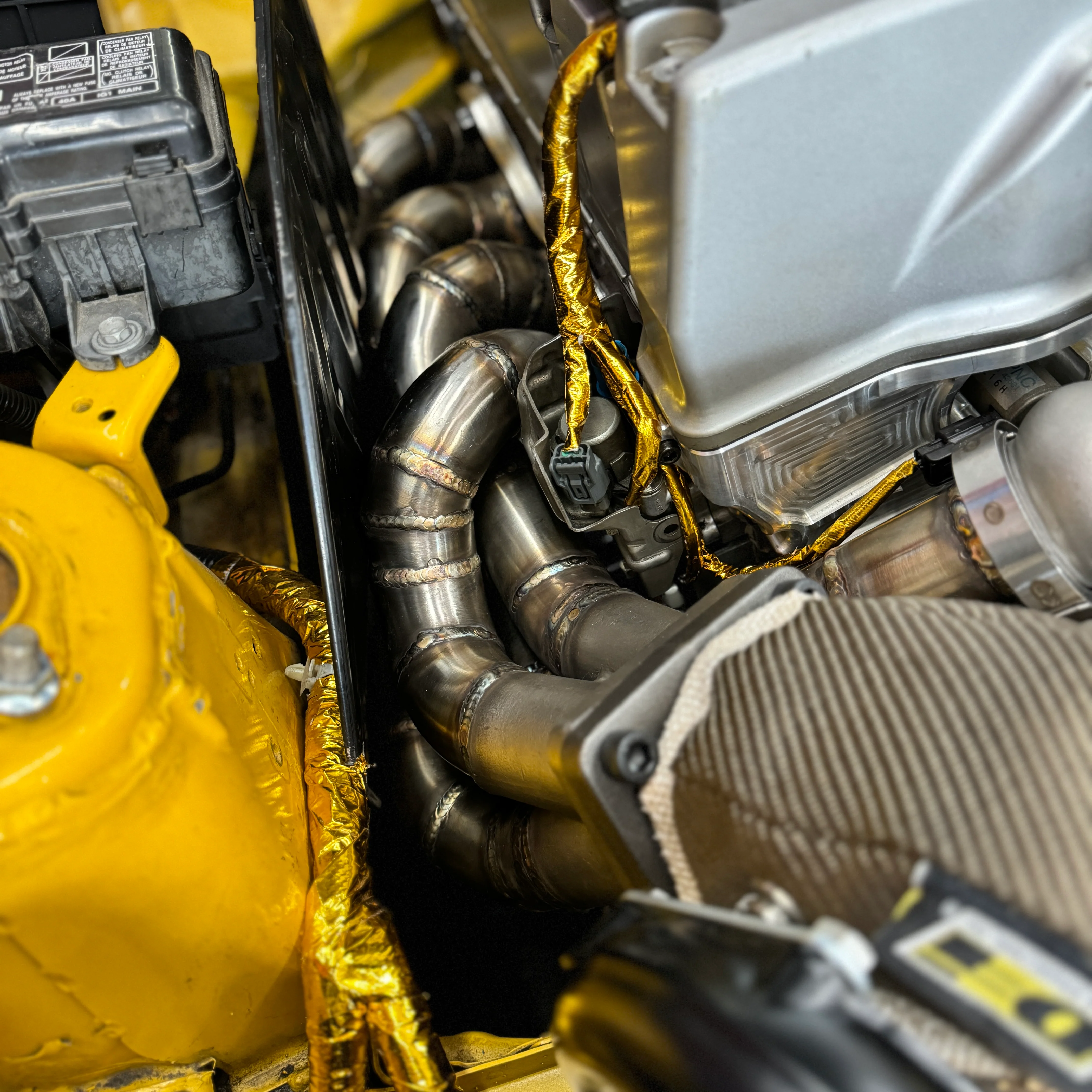

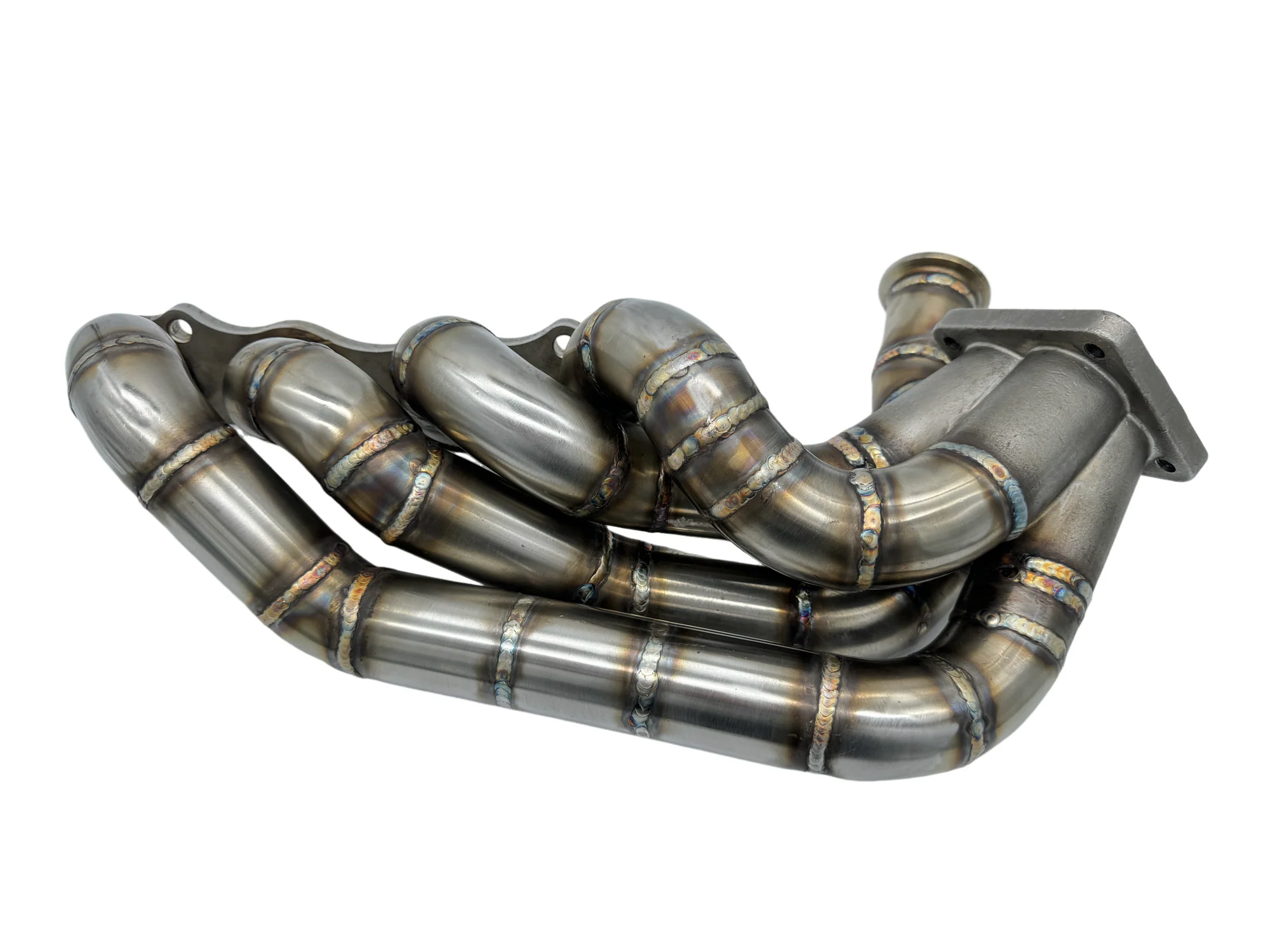

• 321 Stainless Titanium Turbo Manifold

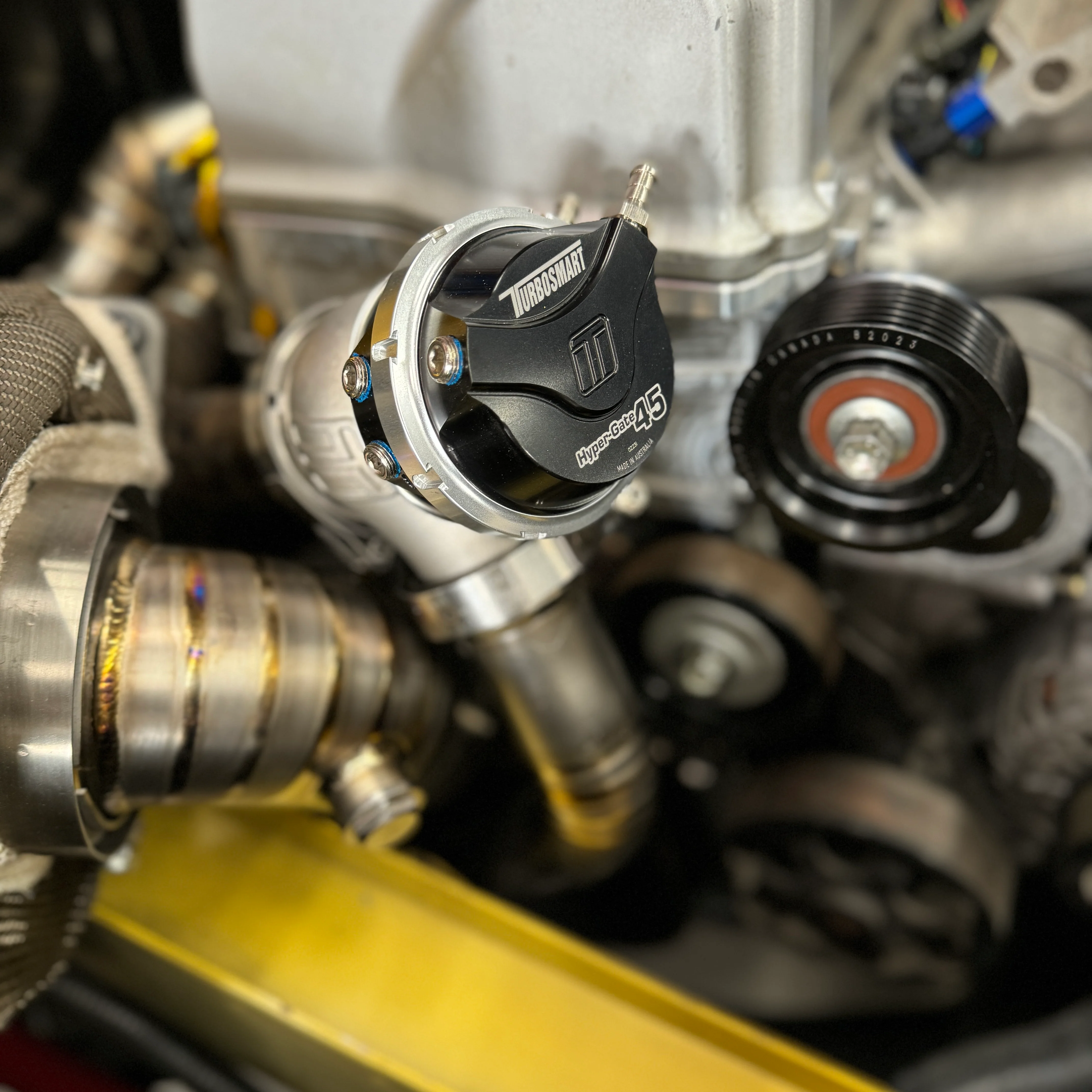

• TurboSmart Wastegate Hypergate 45

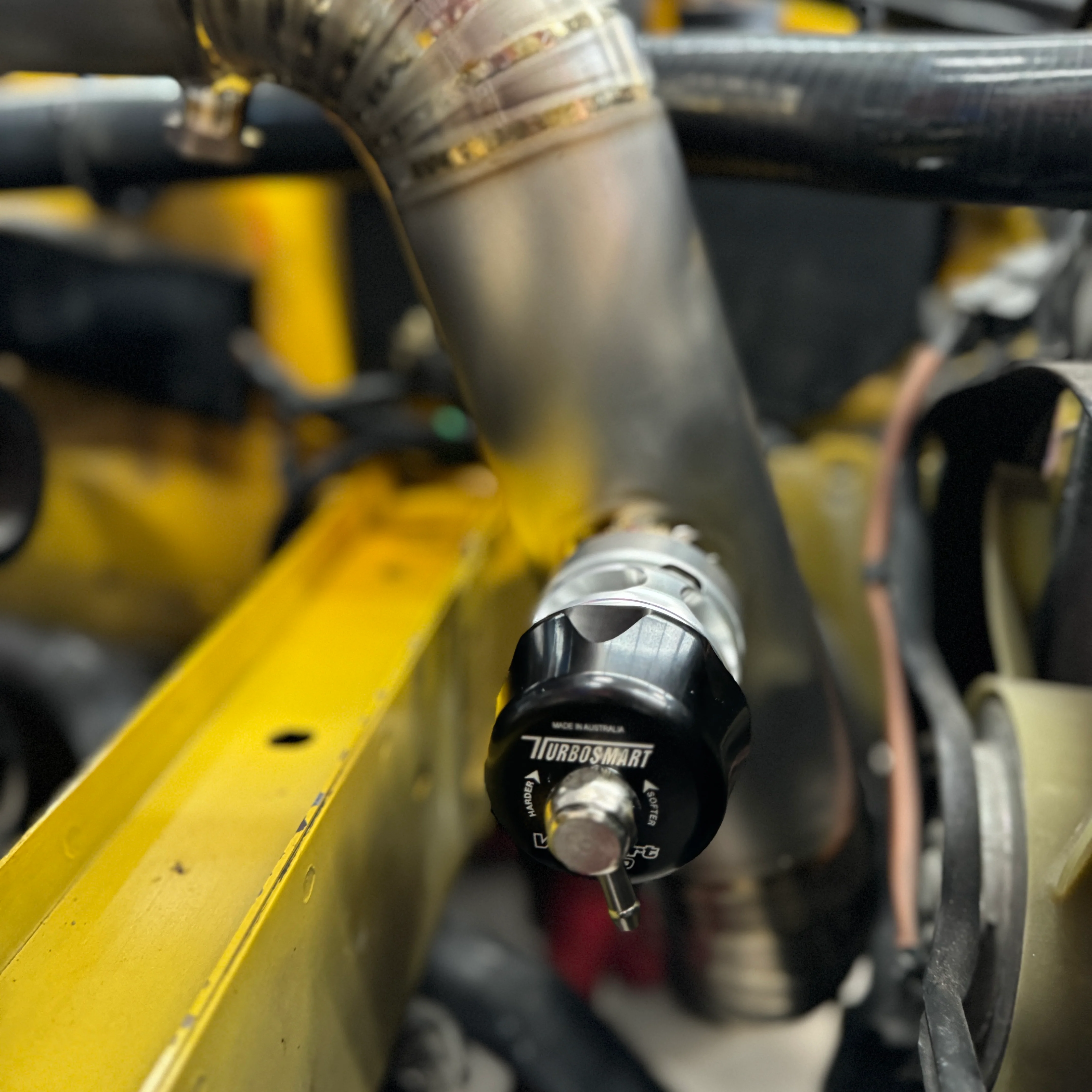

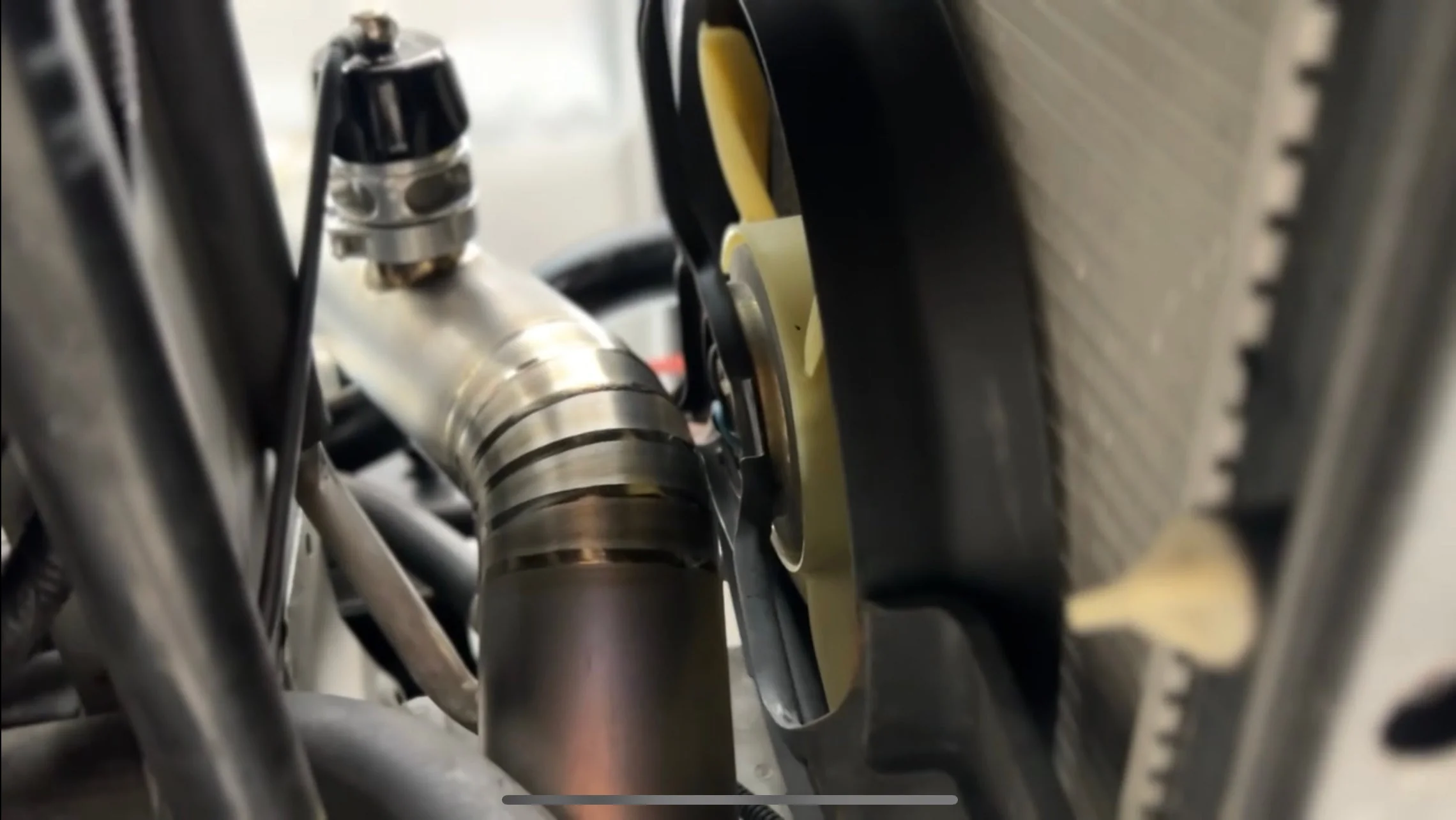

• TurboSmart Compact BlowOff Valve

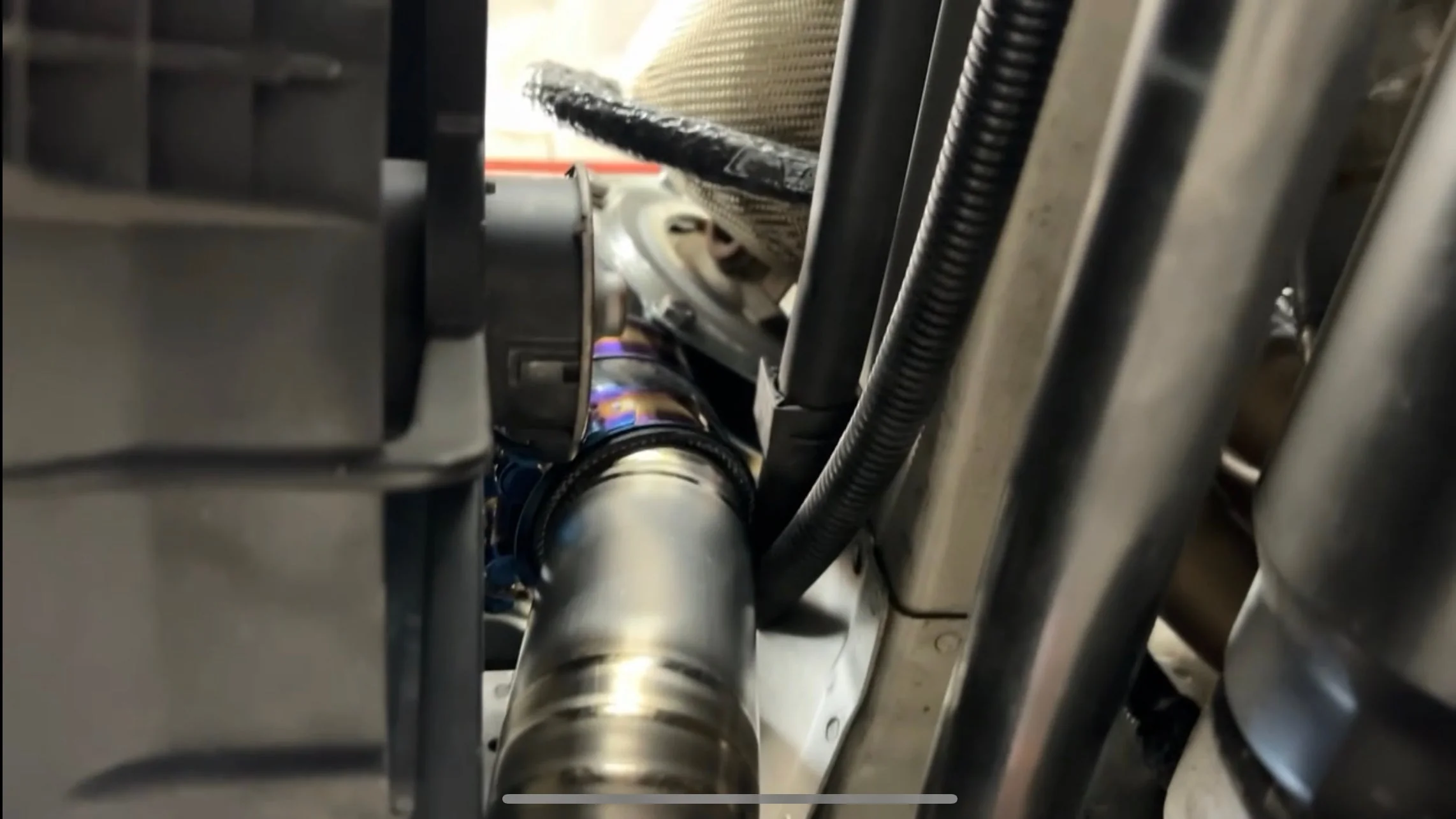

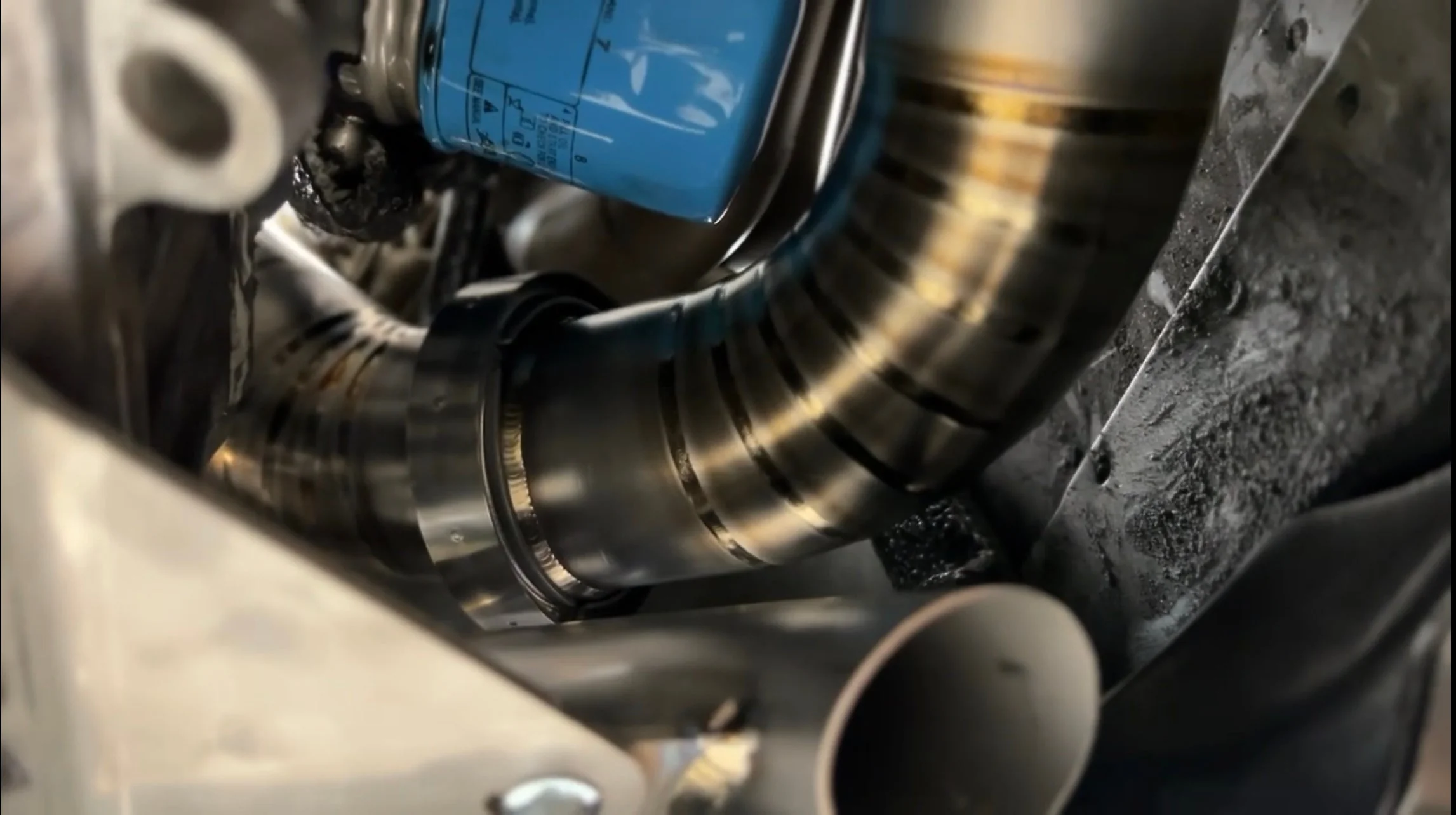

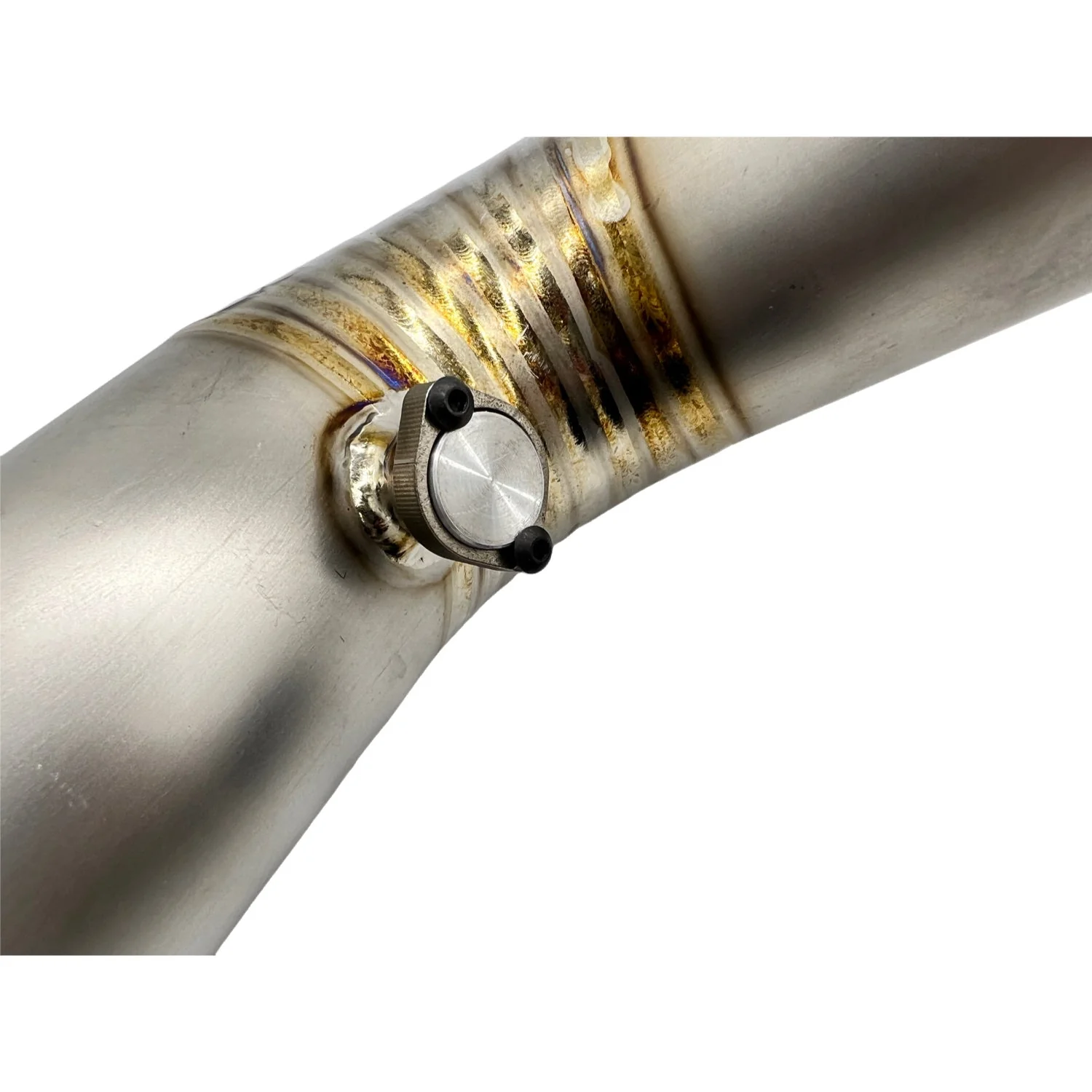

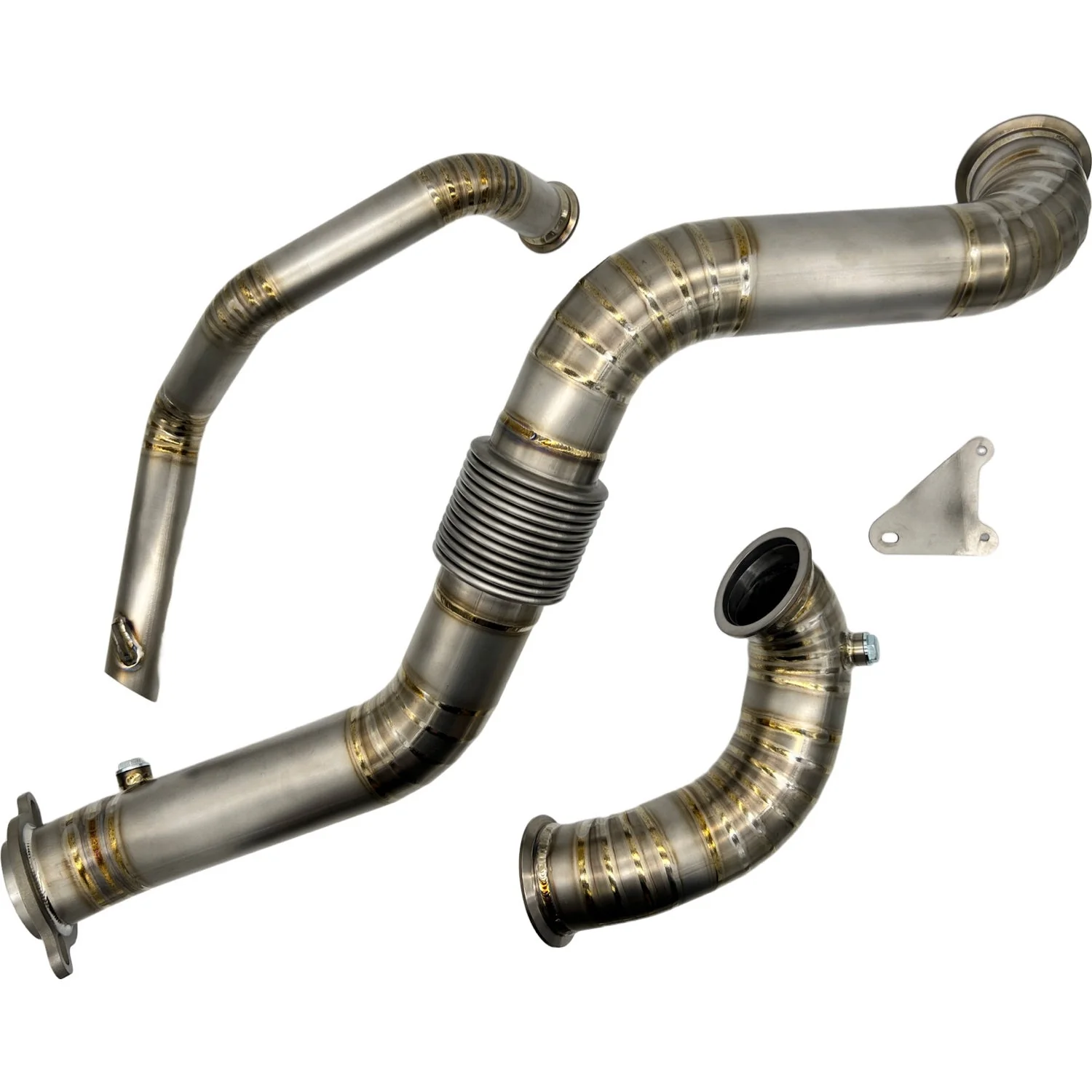

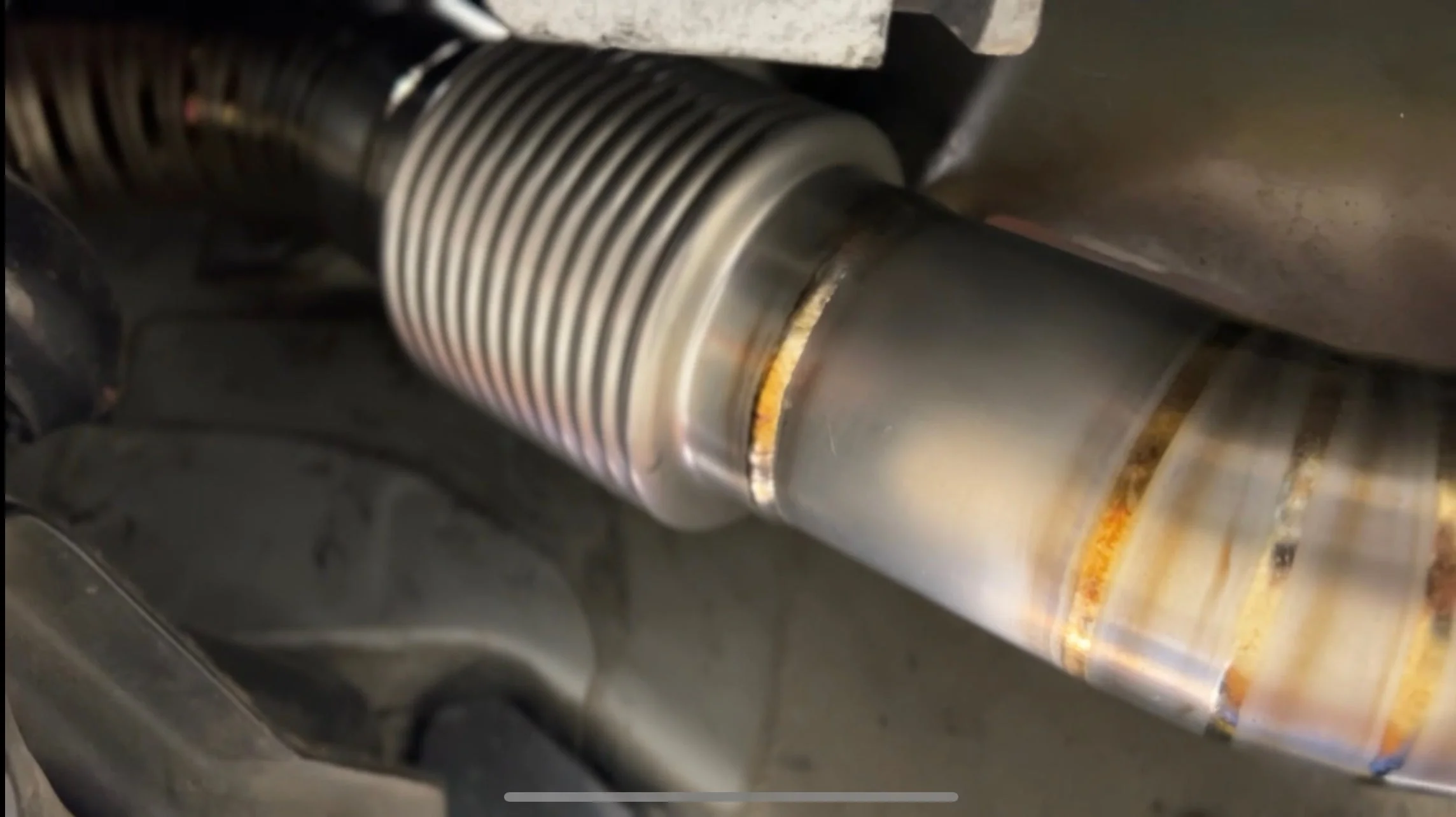

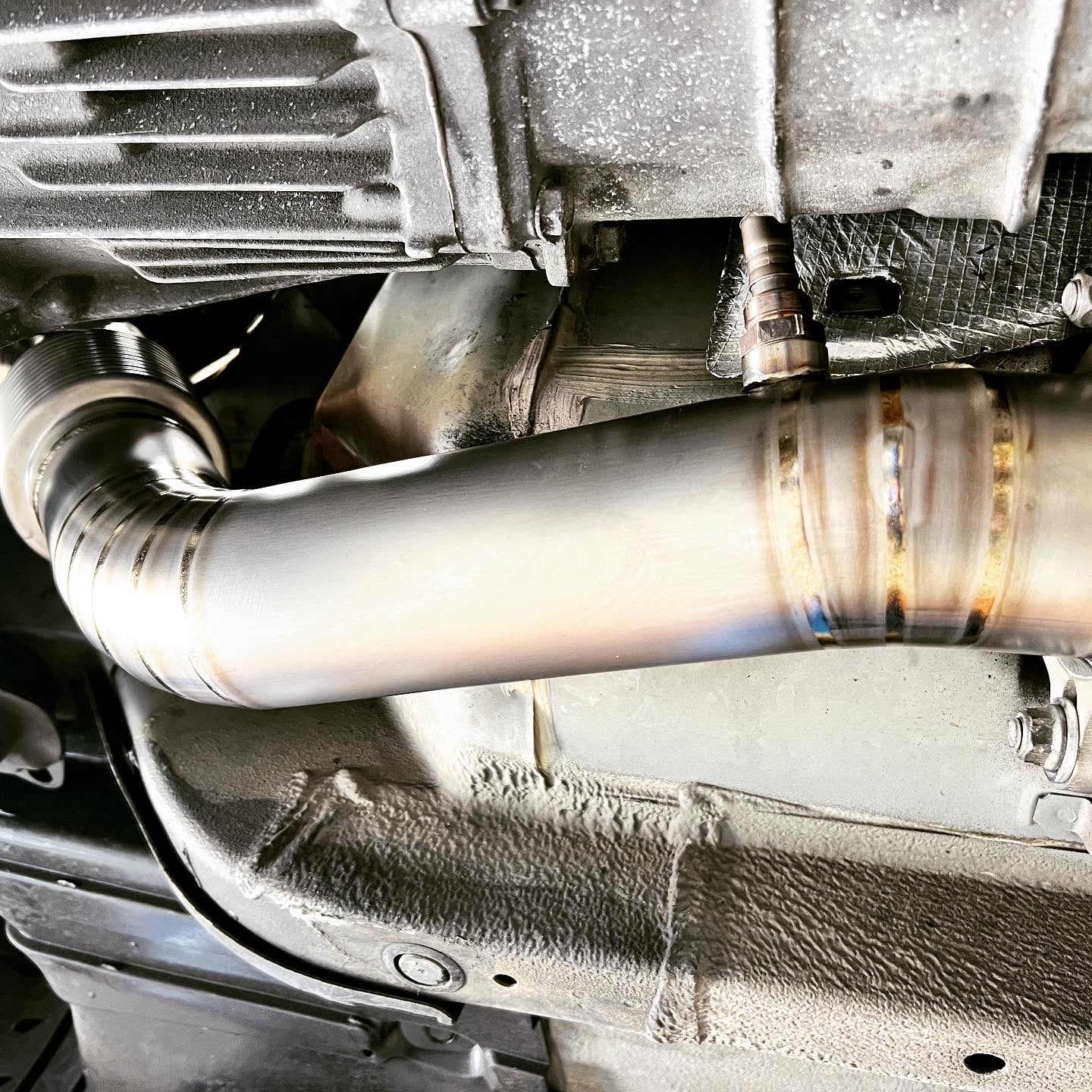

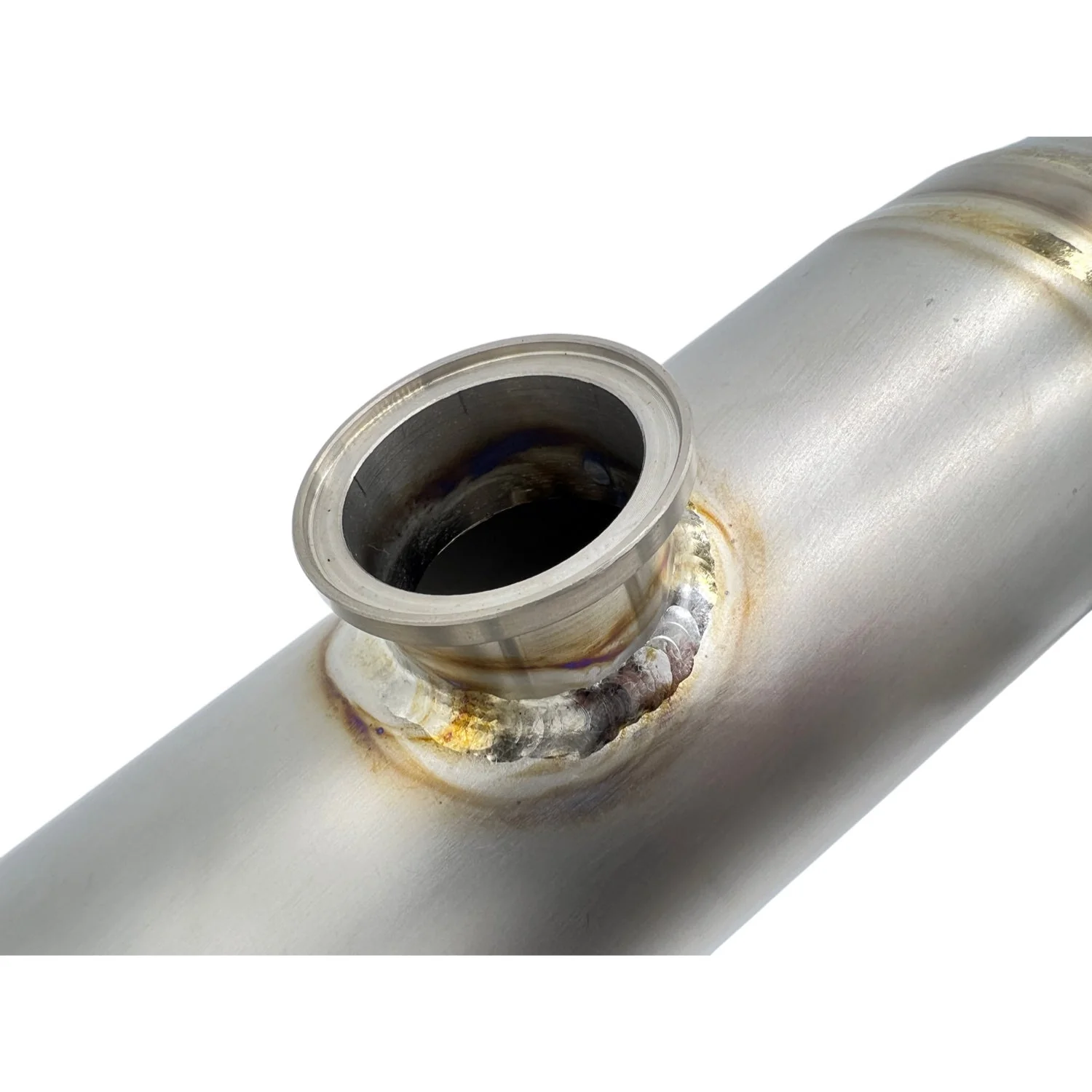

• All New - Titanium Pie Cut 2pc 3 inch Downpipe

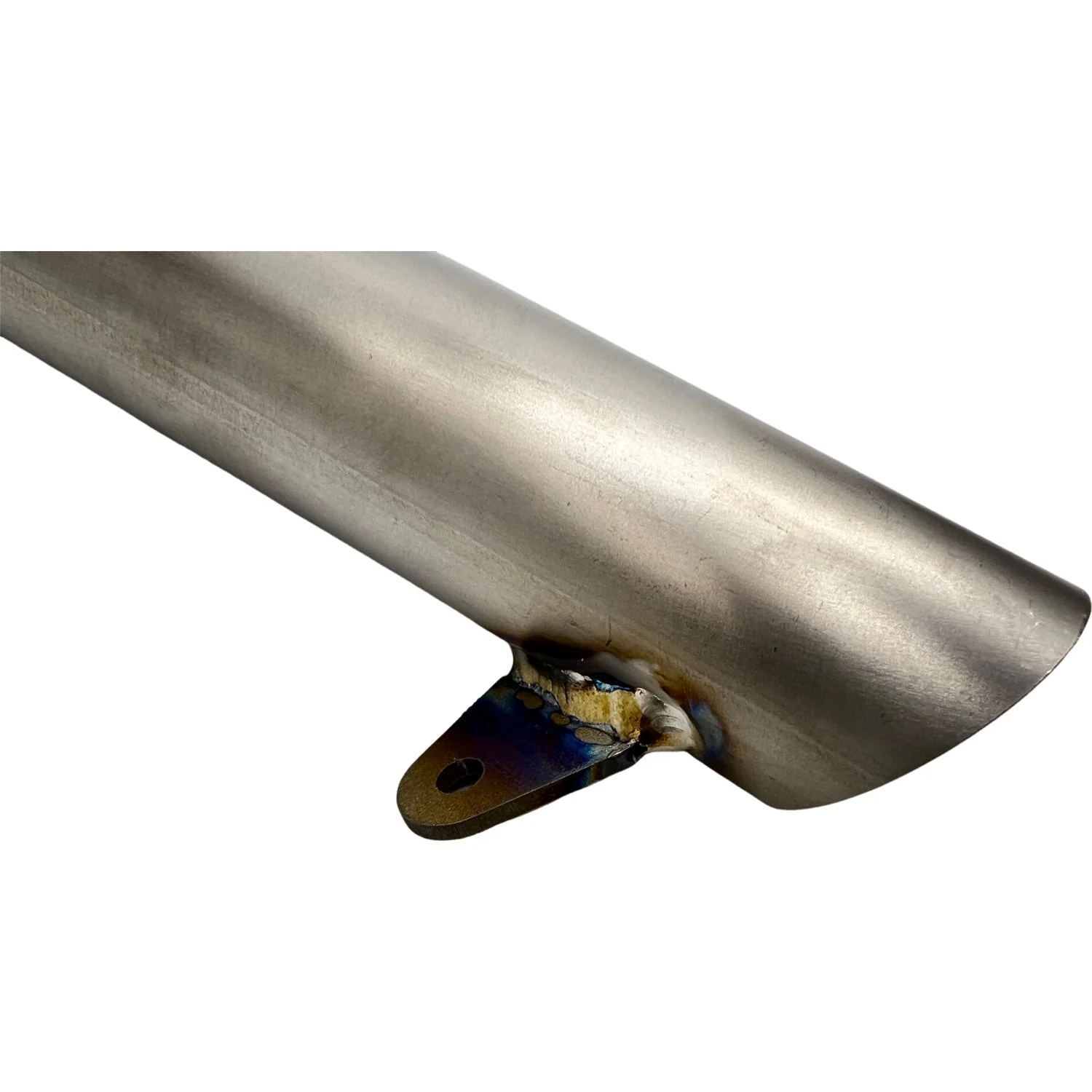

• All New - Titanium Pie Cut 1.75 inch Dump Tube

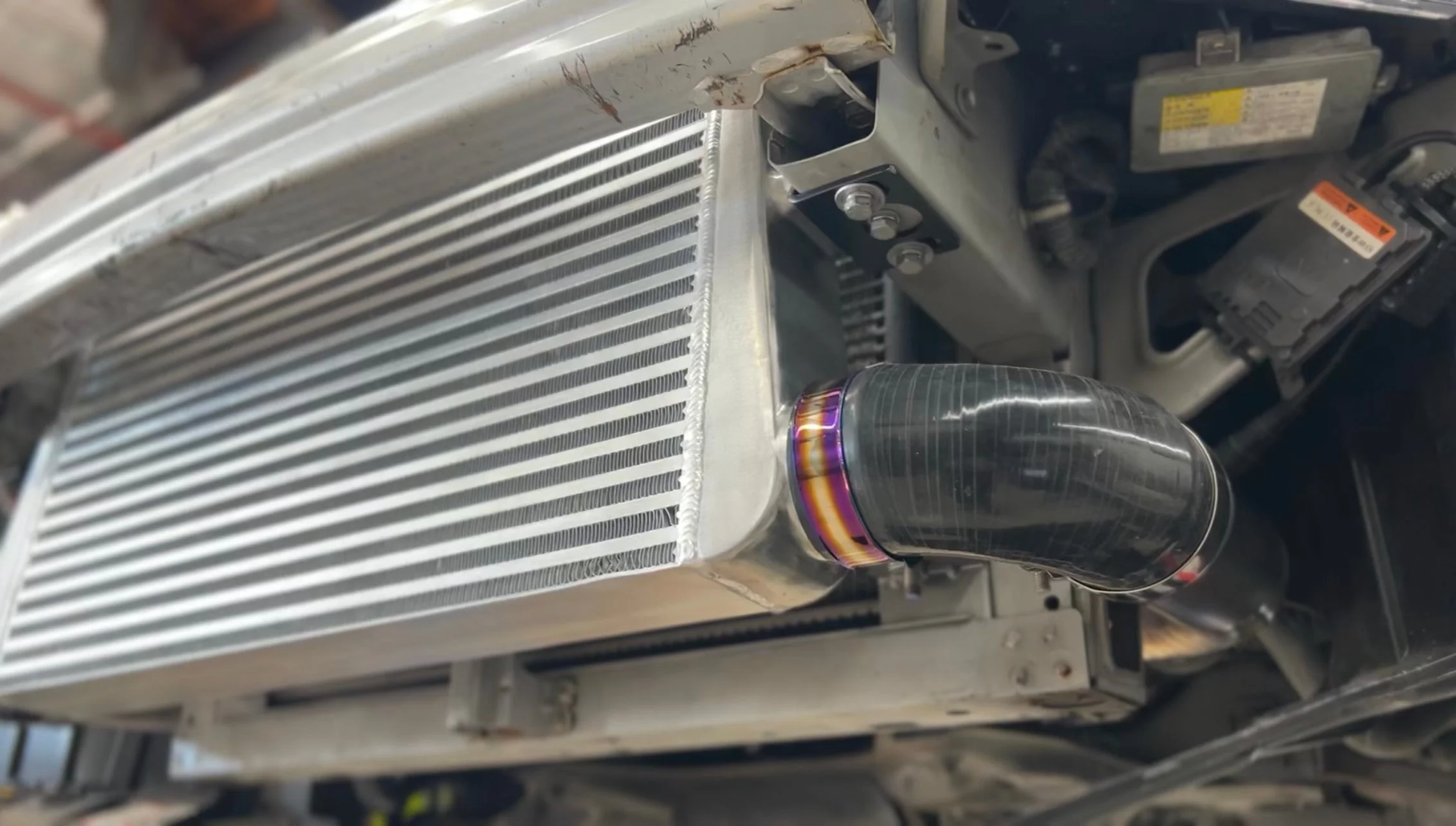

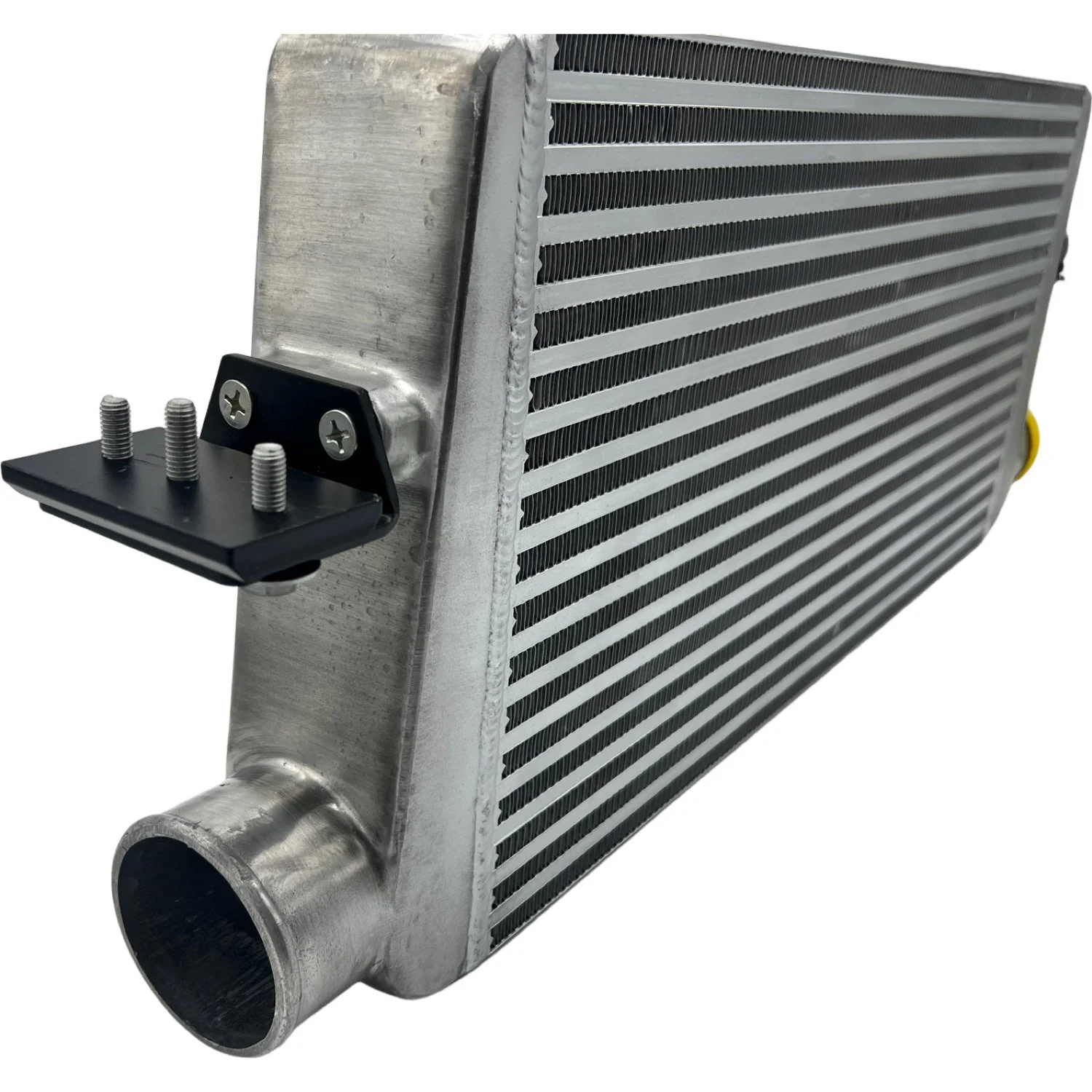

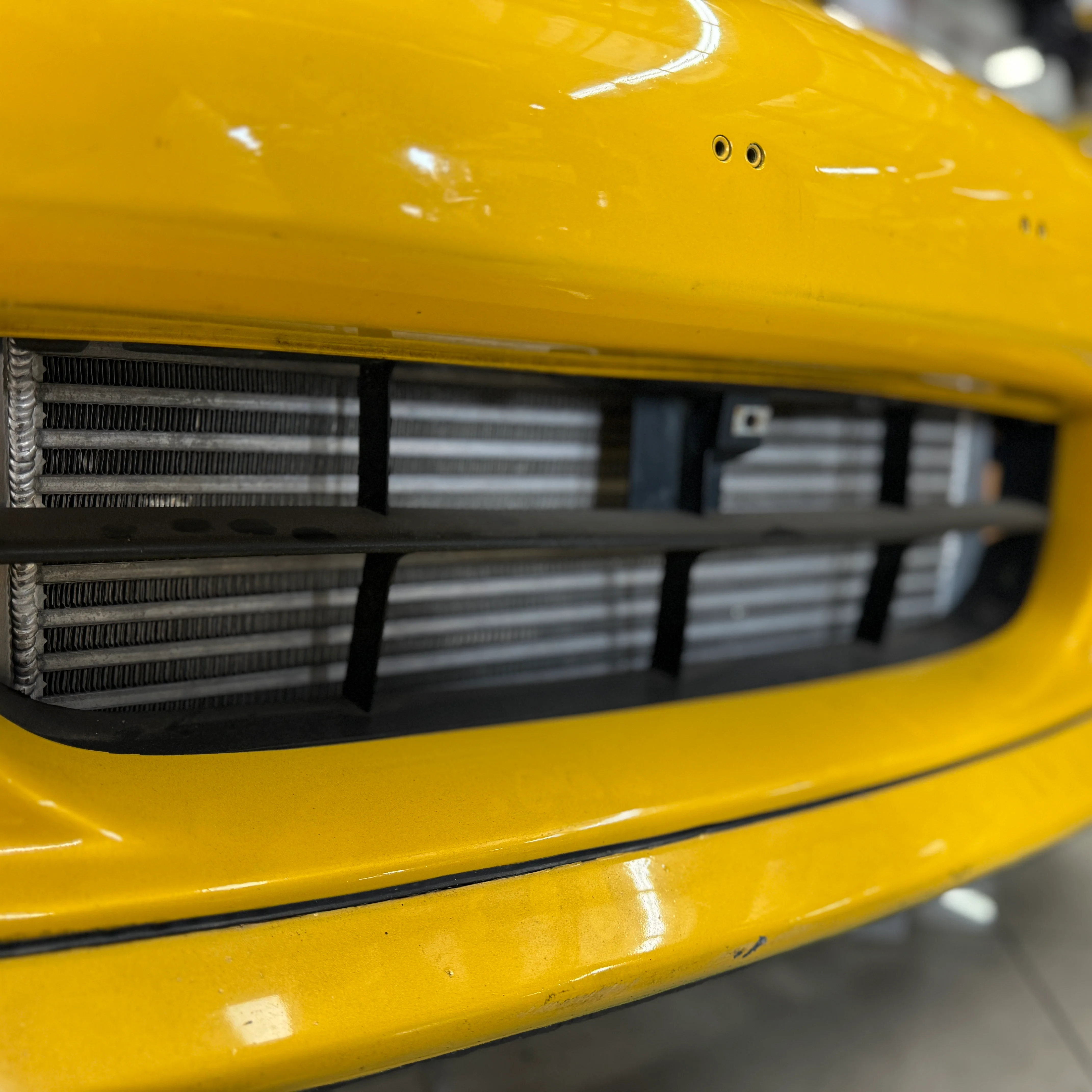

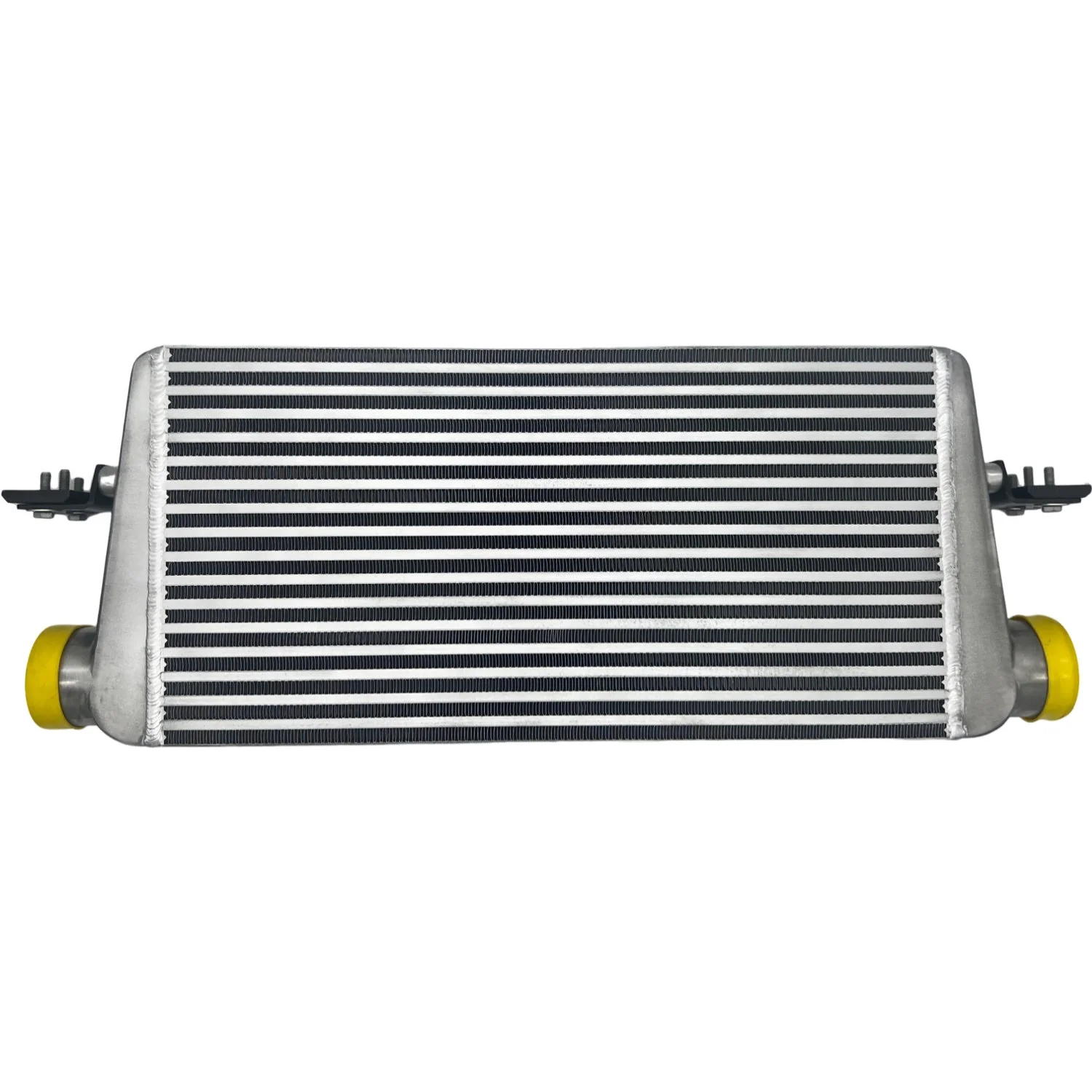

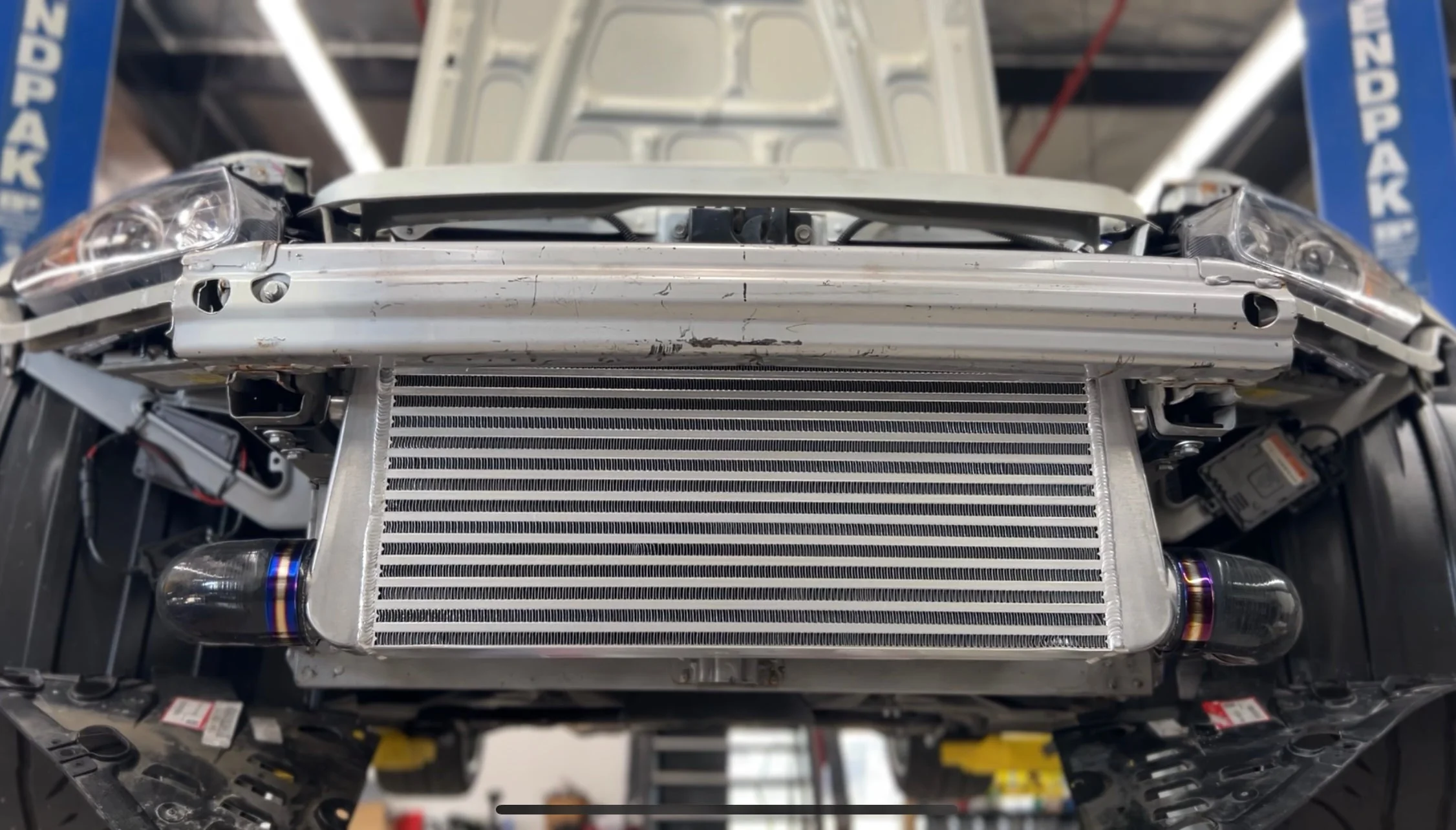

• Newly Revised - Intercooler Core Size: 24"x12"x3" (Now 8 Degrees Colder Air)

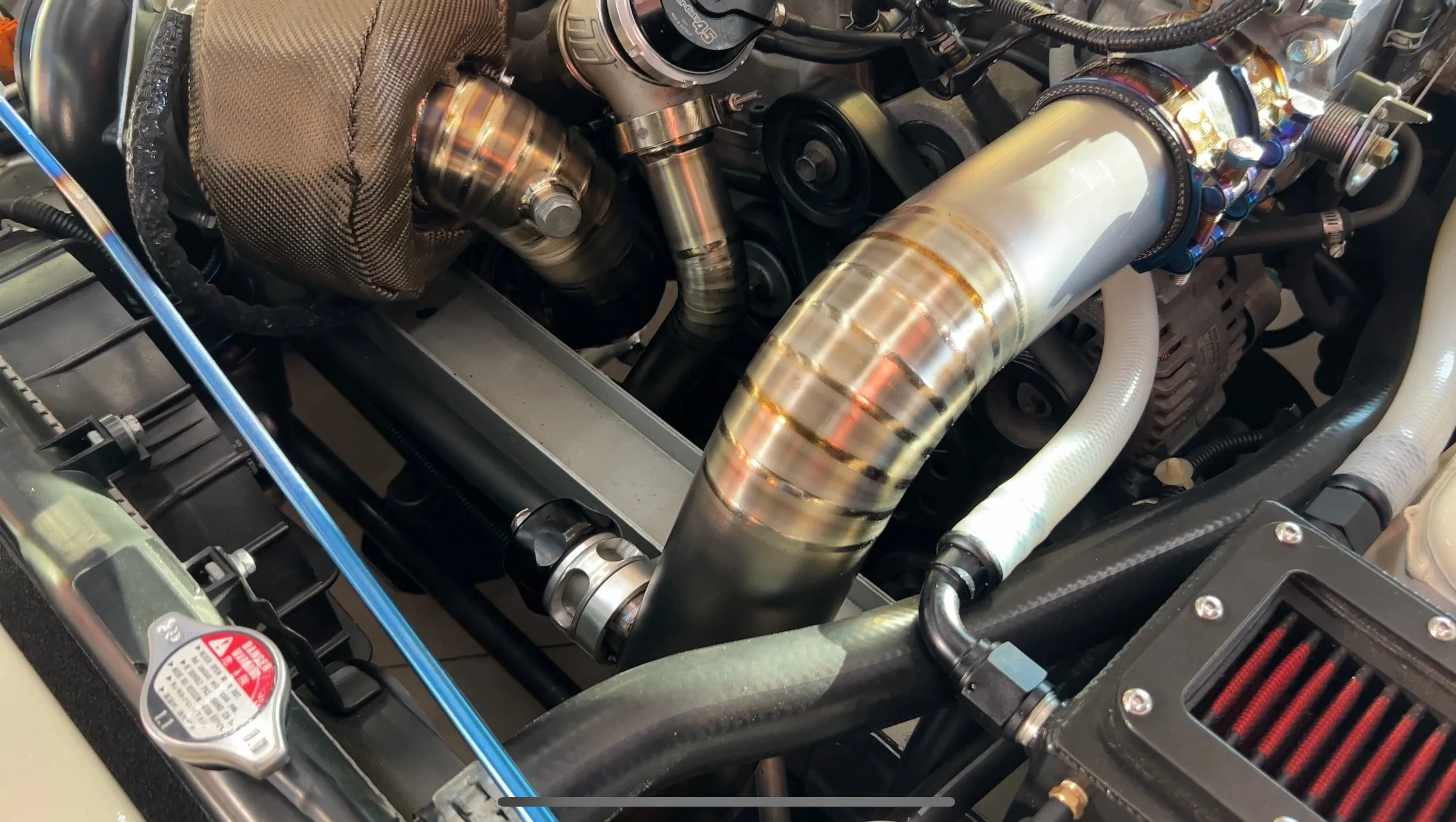

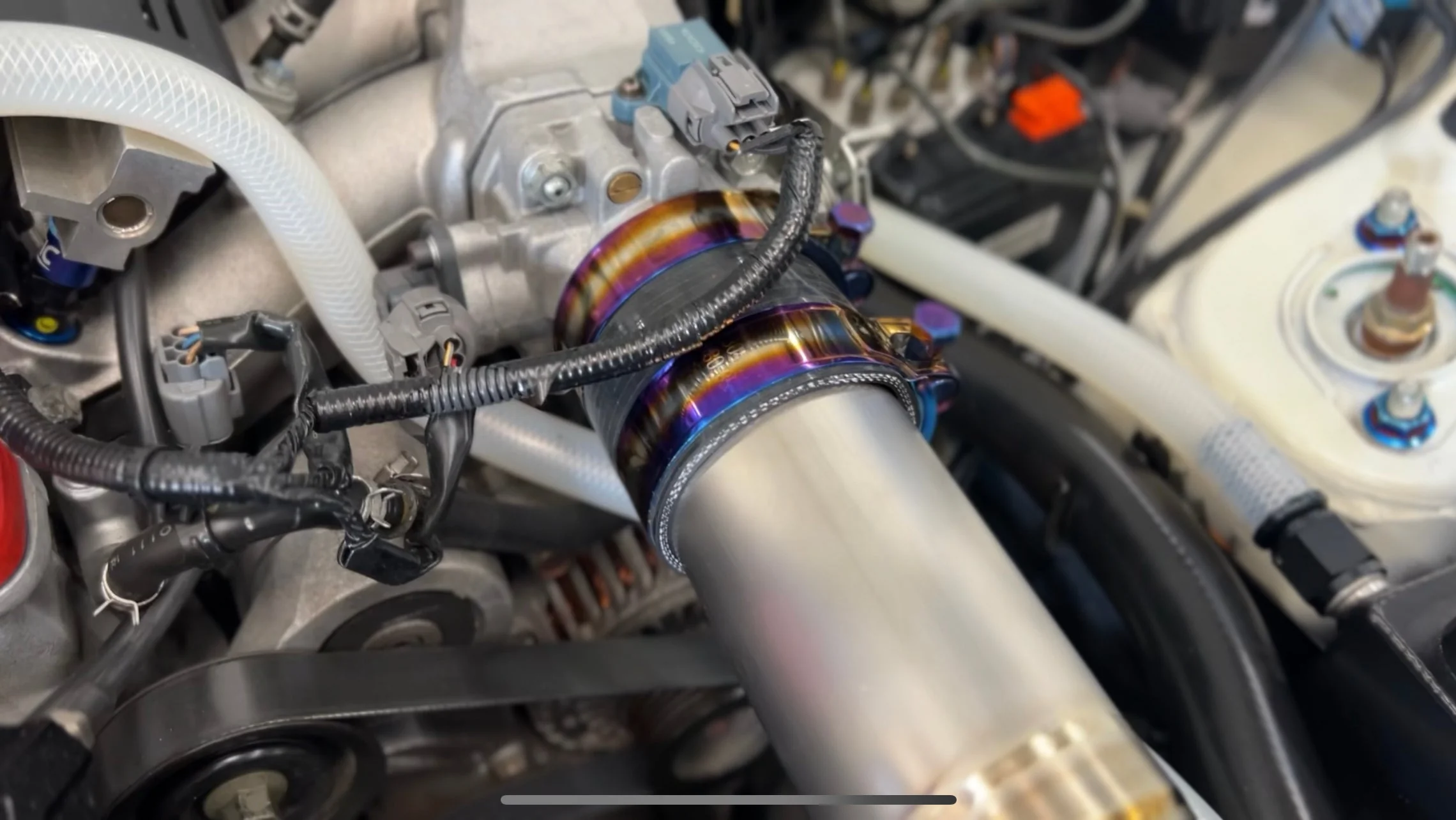

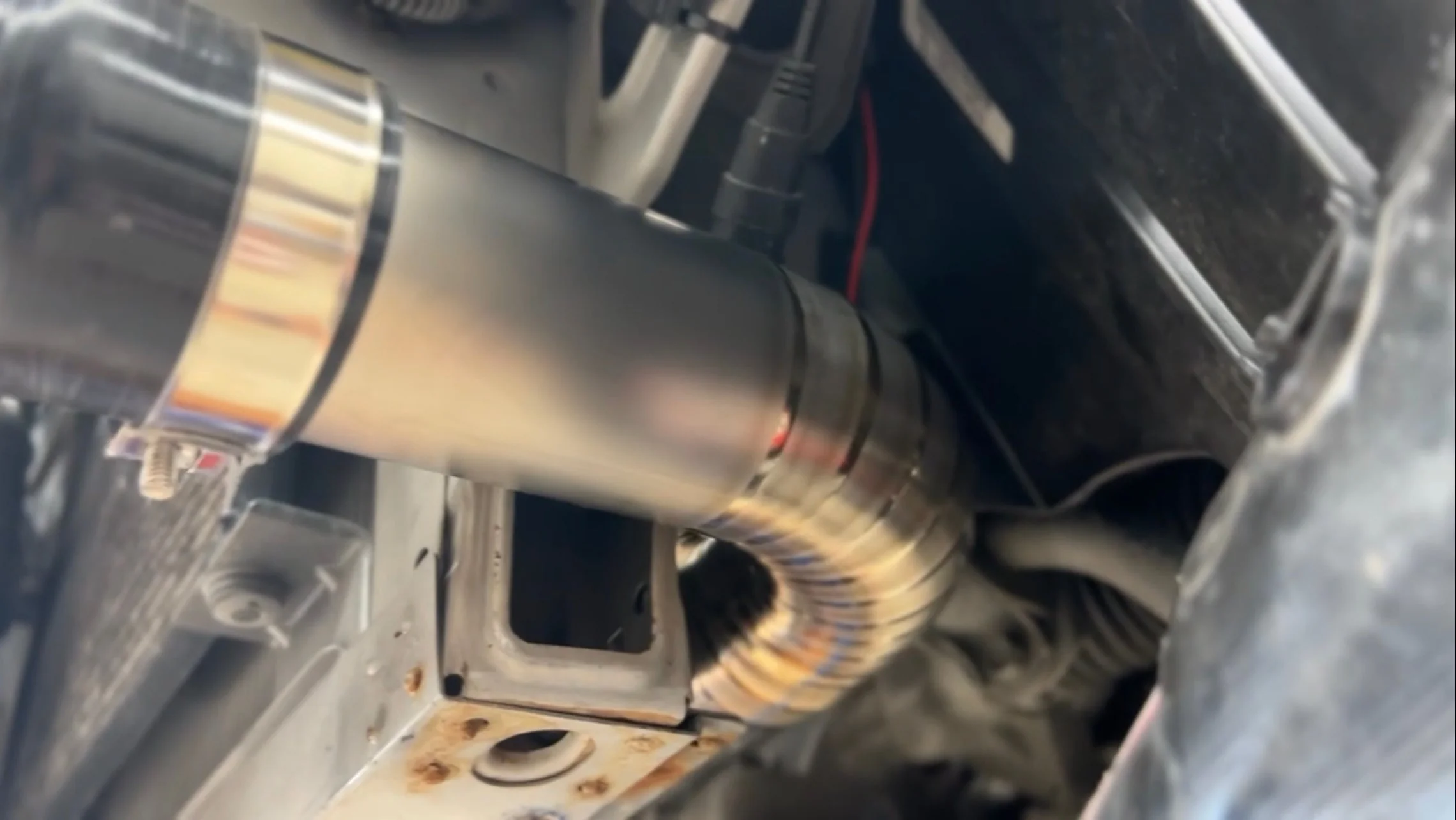

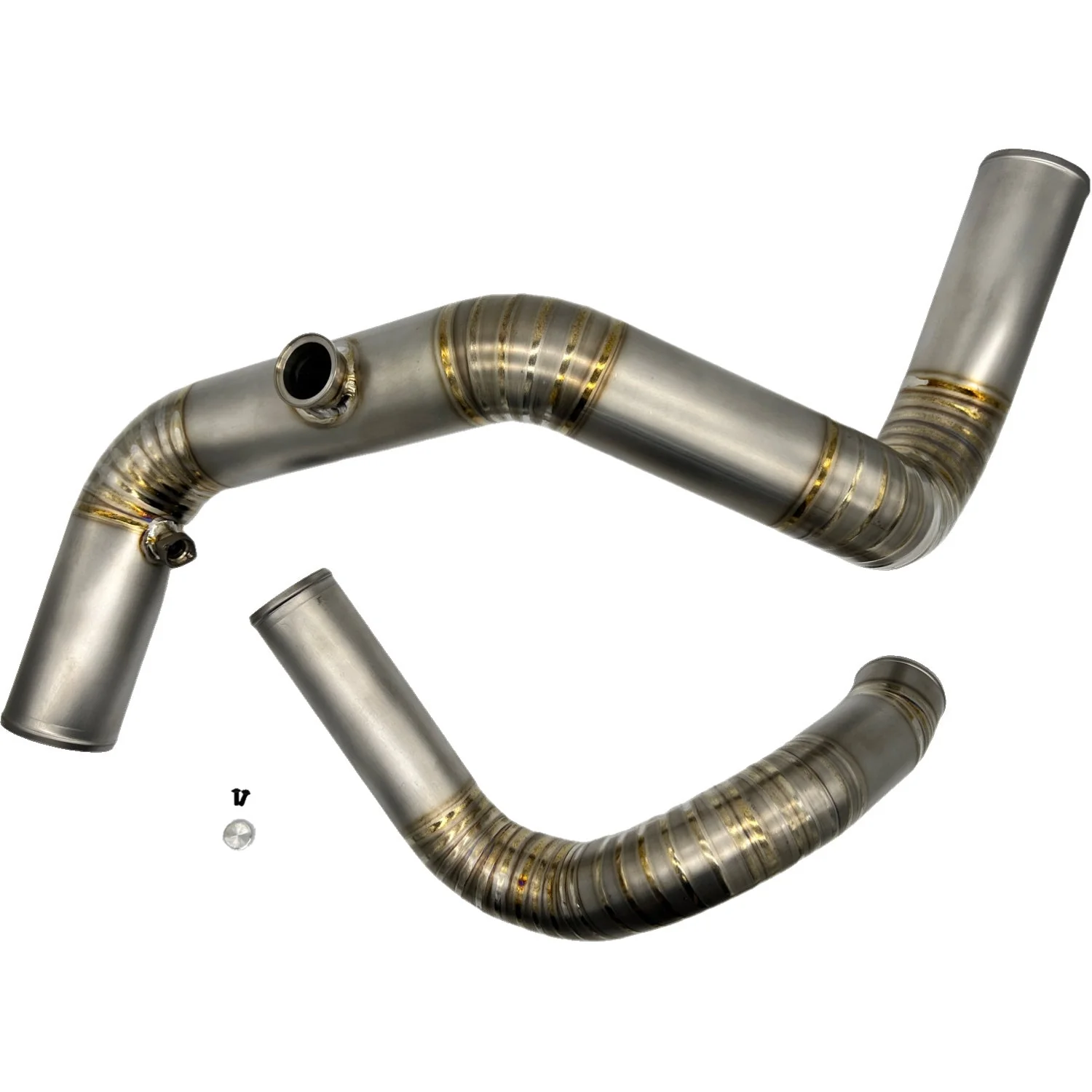

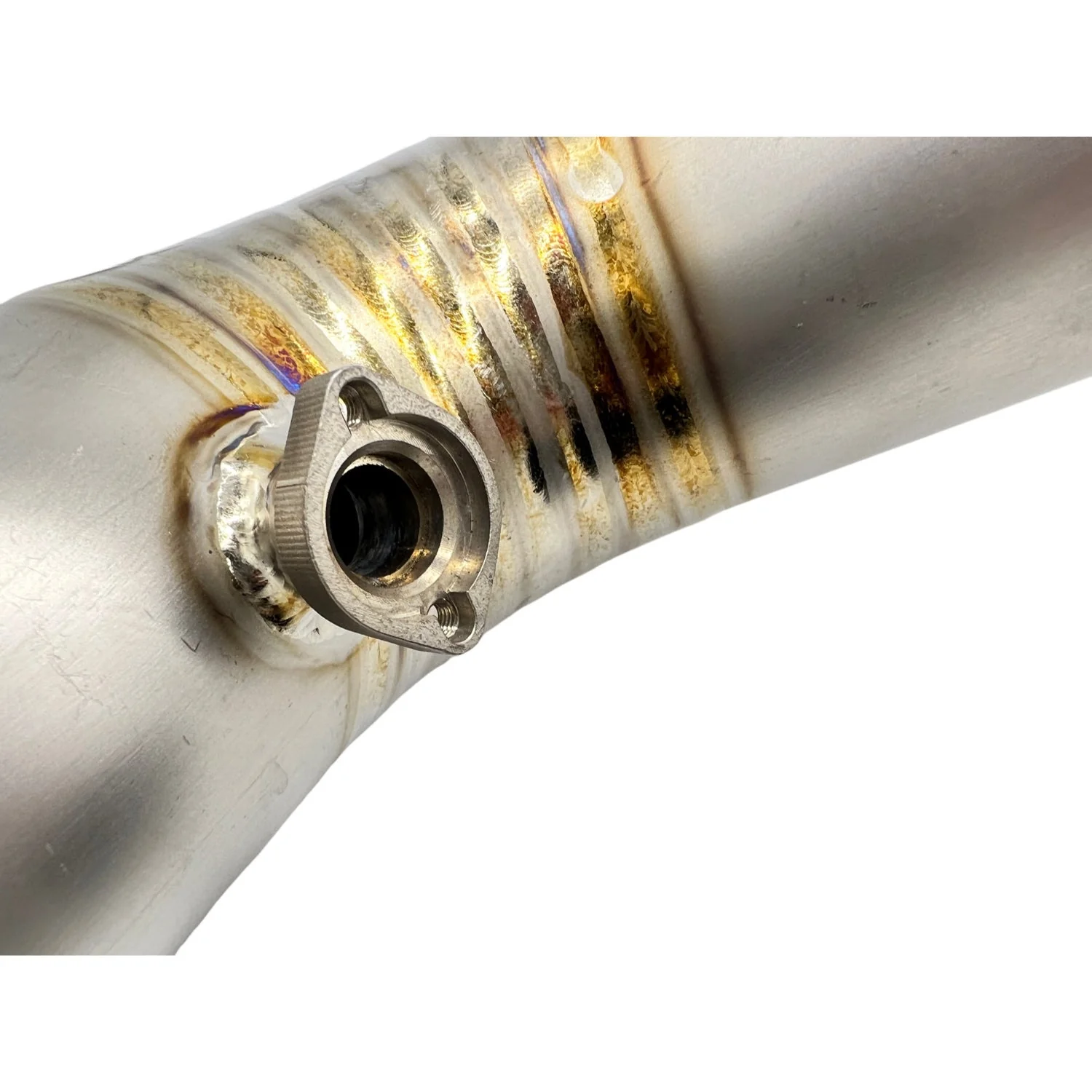

• All New - Titanium Pie Cut 2pc 3 inch Left & Right Intercooler Pipes
• 3 inch Black Silicone Straight Coupler
• 2.5 inch Black Silicone Straight Coupler
• 3 inch 90 Degree Black Silicone Elbow Coupler
• 2.5 to 3 inch 90 Degree Black Silicone Elbow Reducer

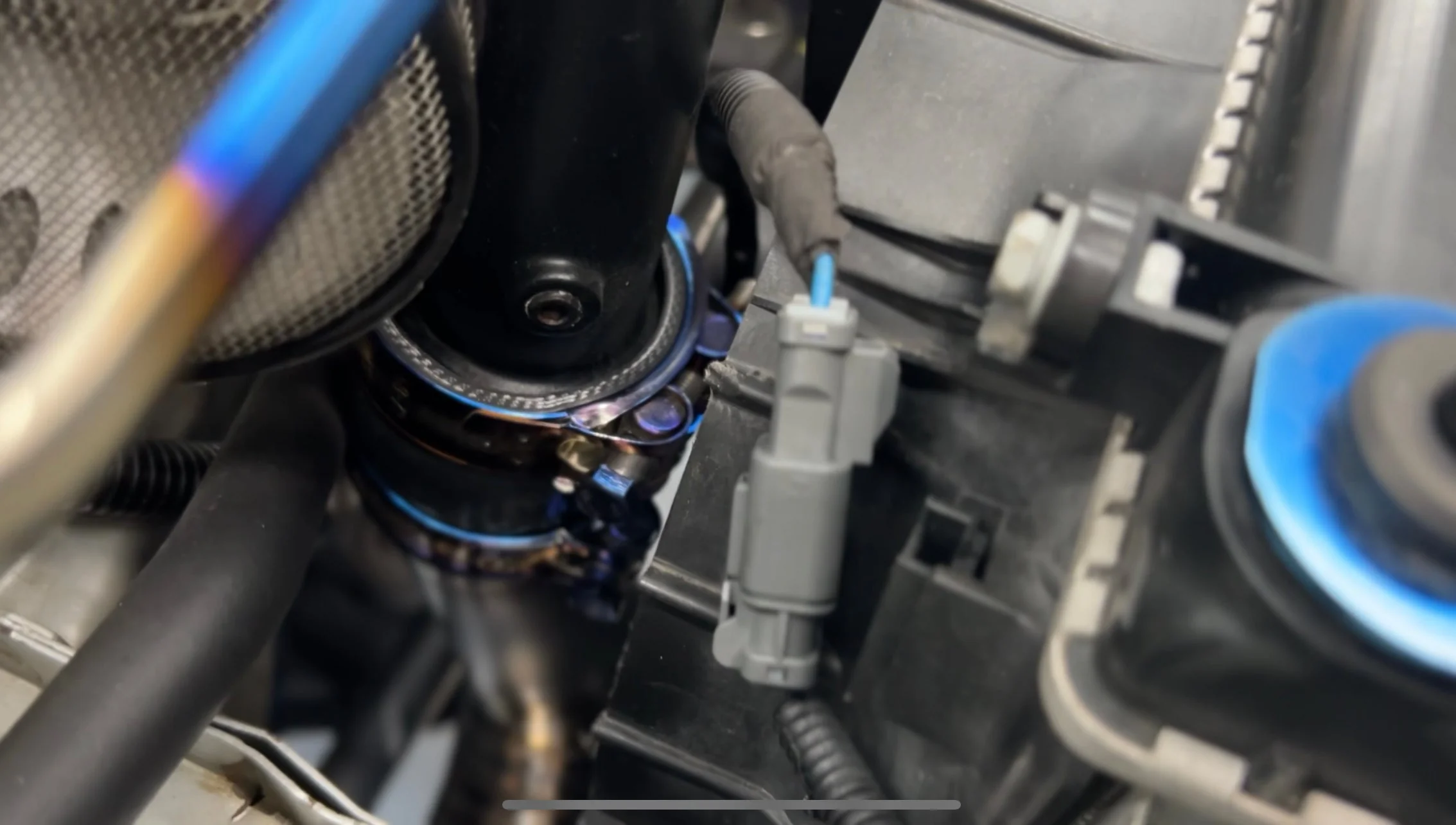

• 2x - 3 inch V Band Clamps
• 5x - 3 inch Stainless Steel T-bolt Clamps
• 3x - 2.5 inch Stainless Steel T-bolt Clamps
• K SERIES OIL RETURN TIMING TENSIONER COVER

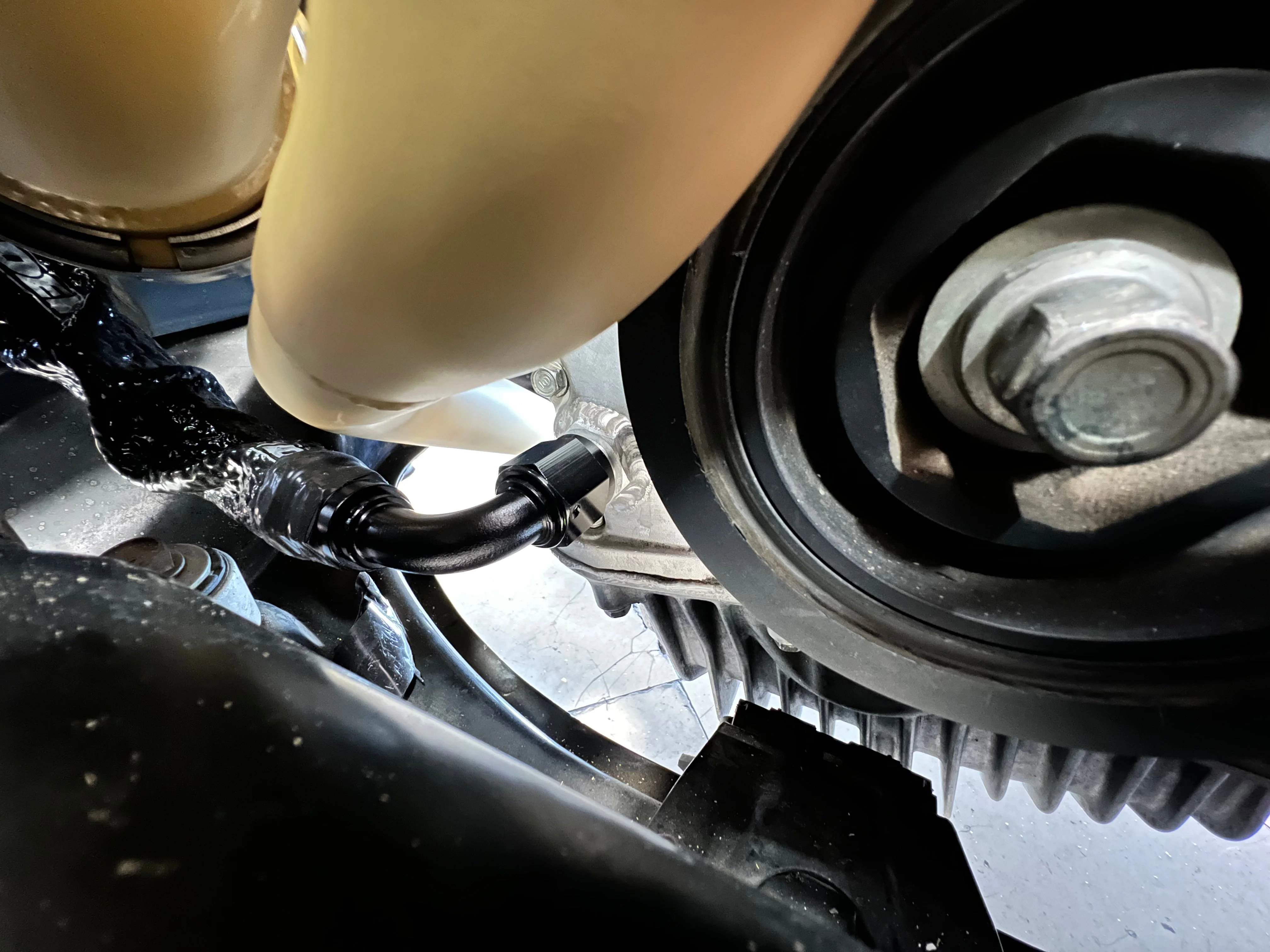

• 18 inch length AN10 Premium Nylon Race Hose Oil Return Line
• AN10 x 90 Degree Swivel Hose Fitting
• AN10 x 45 Degree Swivel Hose Fitting
• Fragola AN4 PFTE Black Oil Feed Hose
• 25mm ID x 32 inch Length High Temp Fire Hose Sleeve for Oil Return/Coolant Lines
• 10mm ID x 18 inch Length High Temp Fire Hose Sleeve for Oil Feed Line

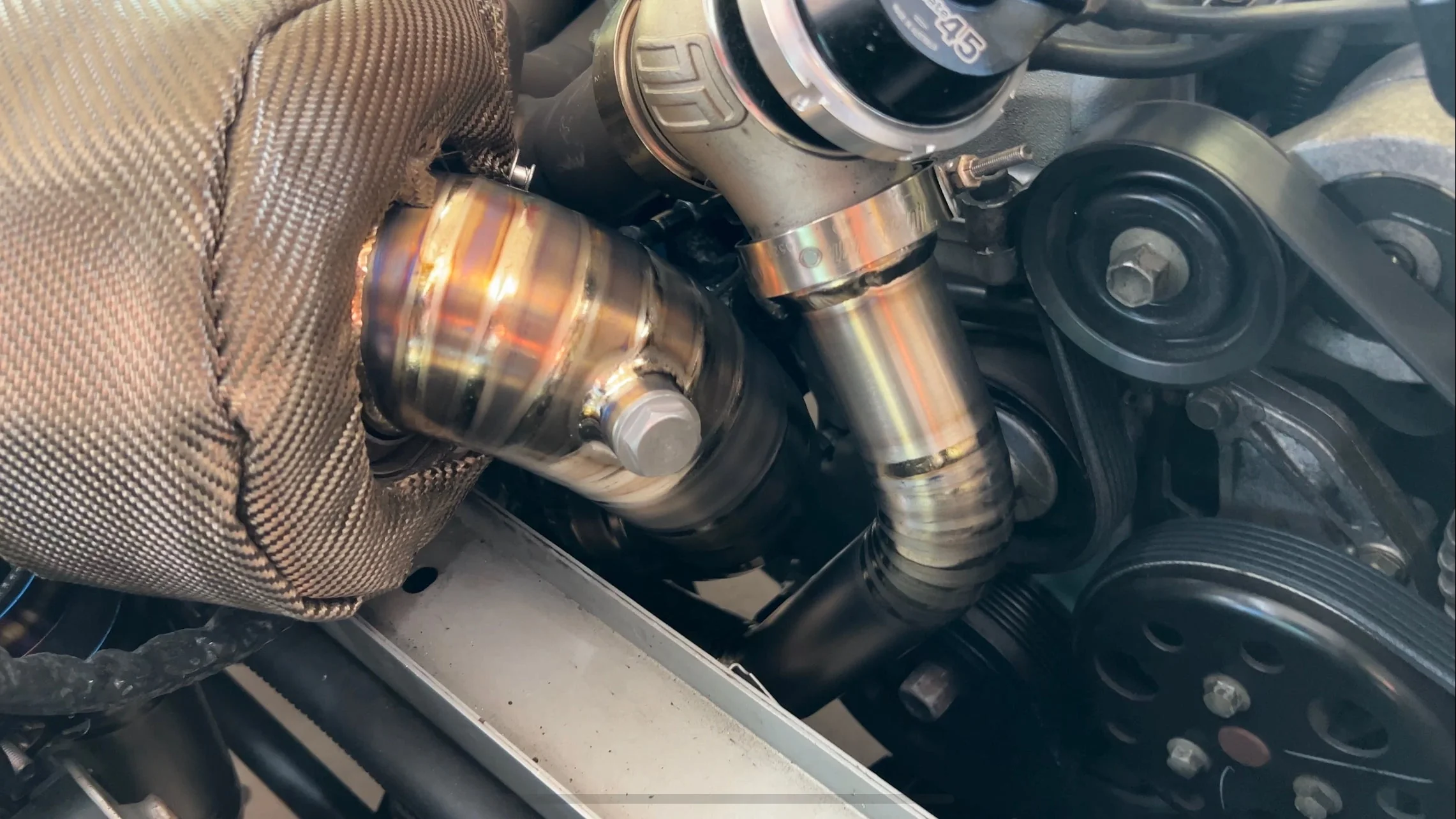

• T4 Turbo Blanket

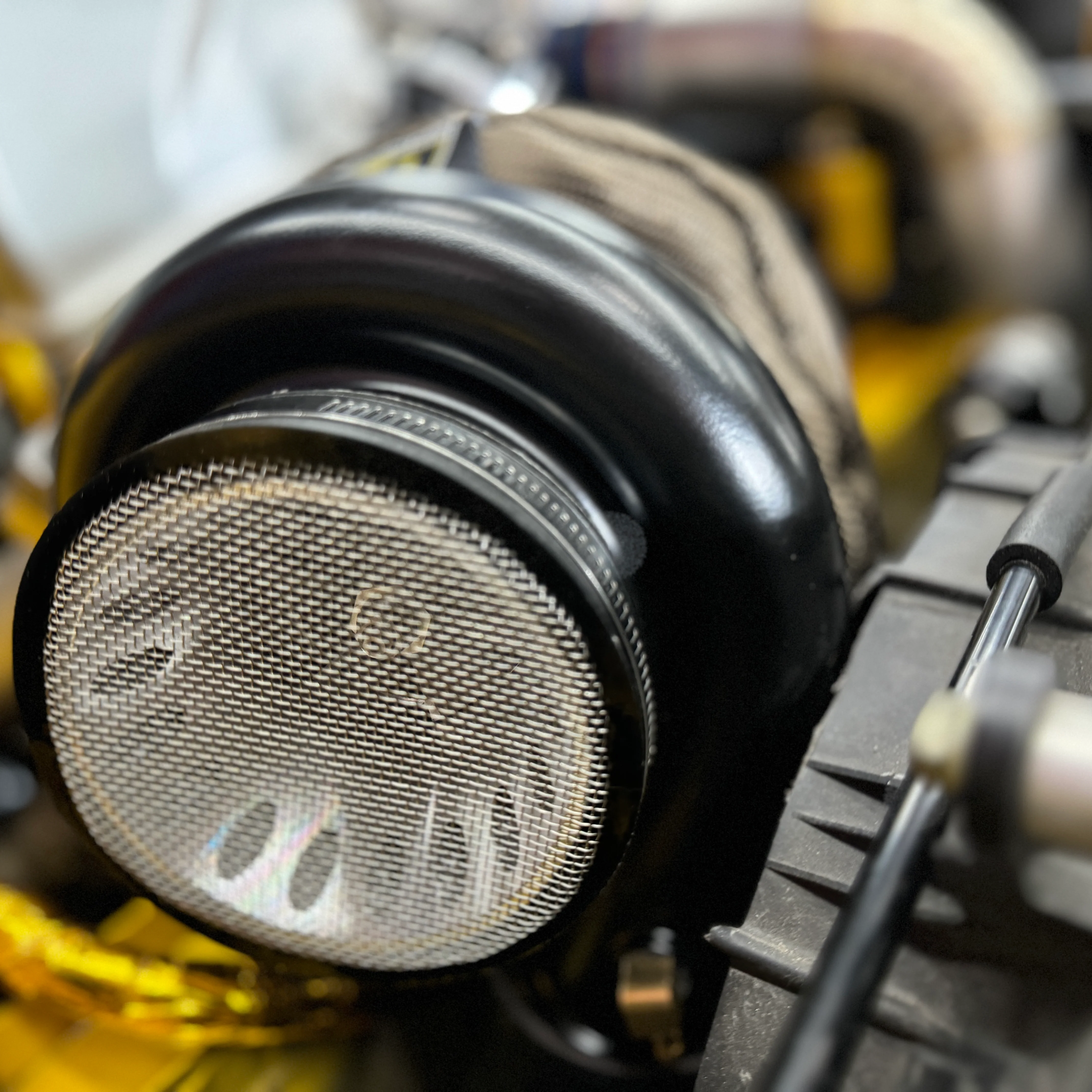

• 4 inch Turbo Guard
• 50mm x 48 inch Length Gold Thermal Heat Barrier Tape
• Stainless Steel AN4to 1/8 NPT Fitting
• Stainless Steel 1/8 NPT to 1/8 NPT Fitting
• Stainless Steel Female T Fitting 1/8 NPT

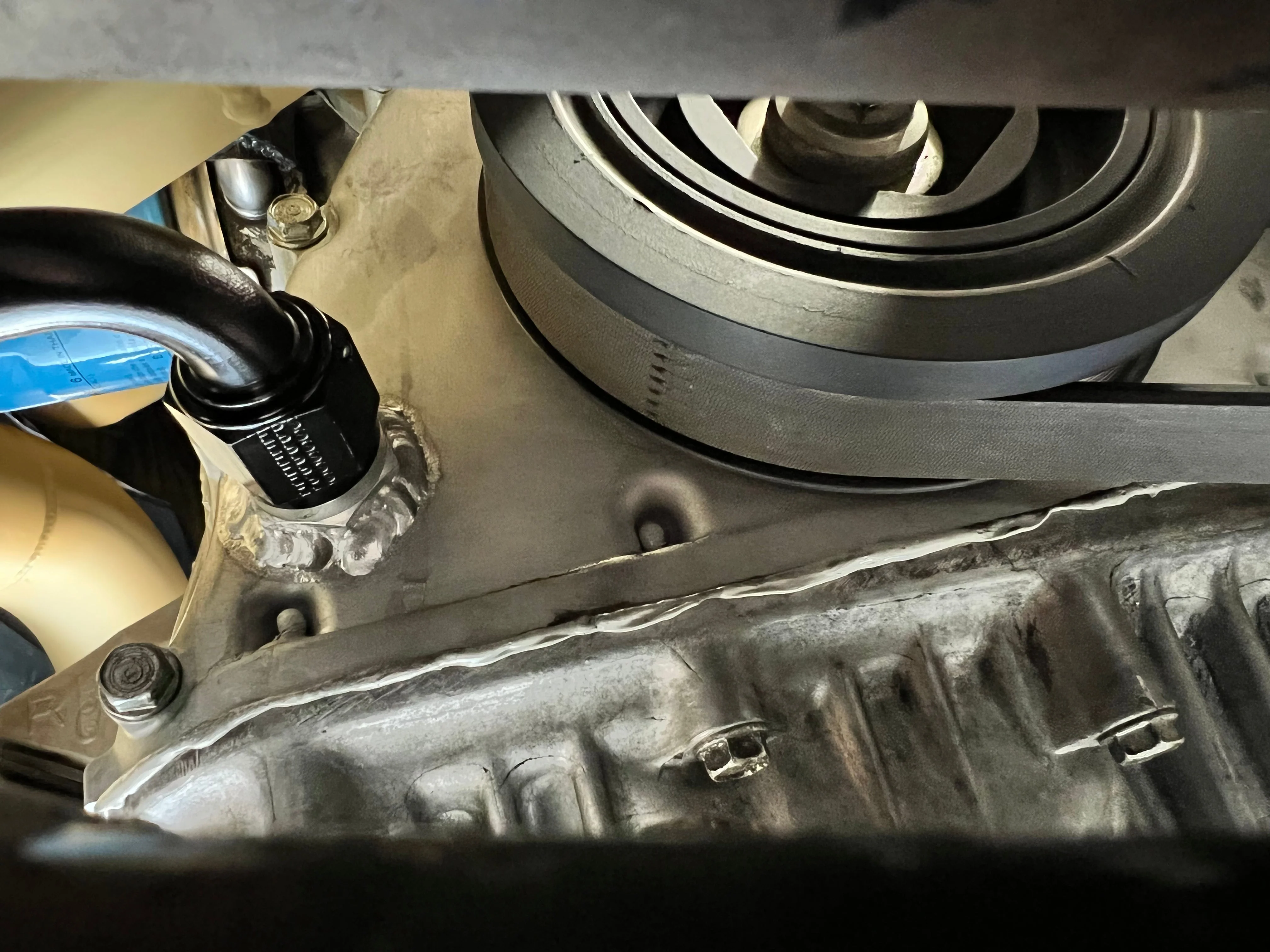

• 6061 Aluminum AN10 Turbo Oil Drain Flange Fitting
• ¼ inch x 36 inch length Vacuum Rubber Black Hose

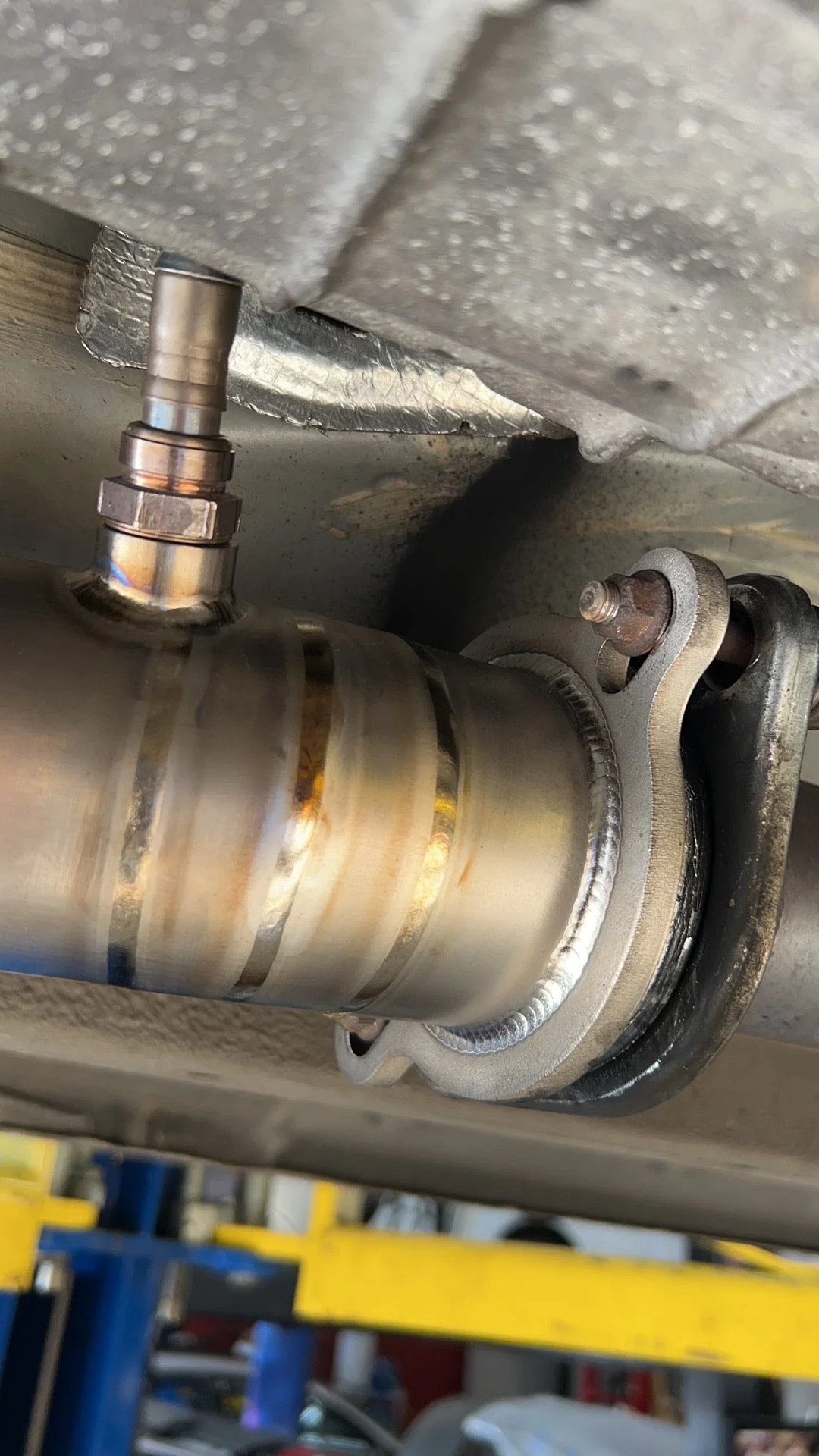

• 3 inch Donut Exhaust Down pipe Gasket

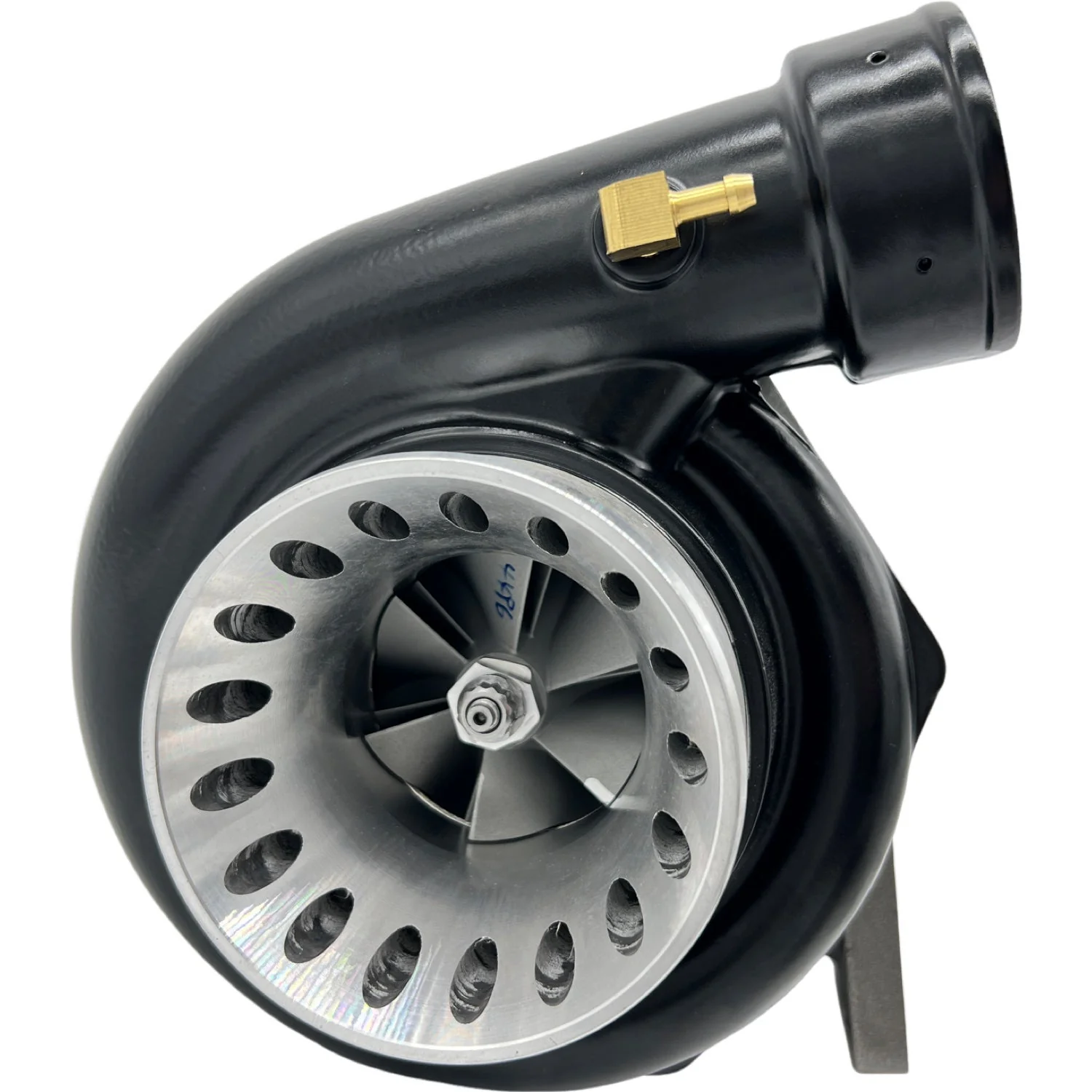

Ballade GT35 Turbo Specs:

• 4" Air Inlet, 2.5" Compressed Air Outlet
• Standard T4 Turbine Housing Flange
• 3" Vband Exhaust Outlet
• Ball Bearing Turbo
• Oil and Water Cooled
• .70 A/R Compressor
• .68 A/R Turbine
• 46mm Vband Wastegate

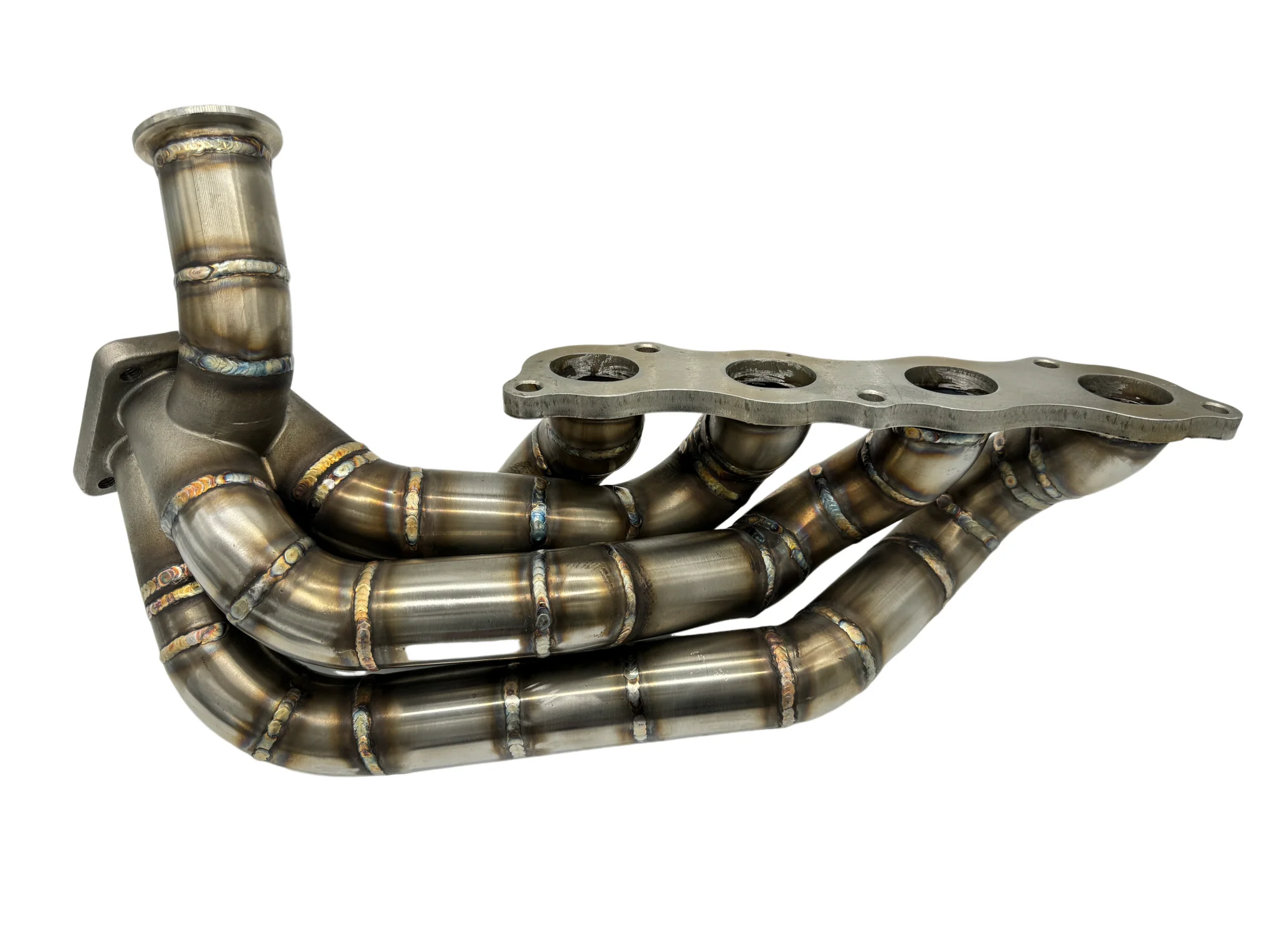

Turbo Manifold Specs:

• 321 Stainless Steel Titanium Material
• 11 Gauge Thick Wall
• T4 Turbo Flange
• 46mm Wastegate Vband Flange
• Optional Bronze Ceramic Coated

Not Included but Needed to complete:

• Upgraded Injectors x4
• Upgraded In tank Fuel Pump
• ECU Management Example: Hondata Kpro/Flashpro, Haltec, AEM etc.
• (Optional) Boost Solenoid
• (Optional) Upgraded 4 Bar Map Sensor - Stock Map Sensor 10psi Only

Recommendations:

• ID1050cc Injectors:
• https://balladesports.com/products/injector-dynamics-00-09-honda-s2000-injector-set-00-05-s2000-1050cc?_pos=1&_sid=e524ffc7c&_ss=r
• Walbro Fuel Pump
• https://balladesports.com/products/walbro-255lph-hp-fuel-pump-gss-342?_pos=1&_sid=ddf7decb5&_ss=r
• Ballade Kpro PnP Harness
• https://balladesports.com/collections/tuning/products/hondata-00-05-s2000-kpro-plug-and-play-no-sensor-conversion
• Hondata Kpro
• https://balladesports.com/collections/tuning/products/hondata-kpro-ecu
• Hondata Flashpro
• https://balladesports.com/products/hondata-2006-s2000-flashpro?_pos=1&_sid=e83654e56&_ss=r
• Highly recommend removal of air pump in the lower bumper
